In my last post, I zoomed in on a preferred technical architecture for the future digital enterprise. Drawing the conclusion that it is a mission impossible to aim for a single connected environment. Instead, information will be stored in different platforms, both domain-oriented (PLM, ERP, CRM, MES, IoT) and value chain oriented (OEM, Supplier, Marketplace, Supply Chain hub).

In part 3, I posted seven statements that I will be discussing in this series. In this post, I will zoom in on point 2:

Data-driven does not mean we do not need any documents anymore. Read electronic files for documents. Likely, document sets will still be the interface to non-connected entities, suppliers, and regulatory bodies. These document sets can be considered a configuration baseline.



System of Record and System of Engagement

In the image below, a slide from 2016,  I show a simplified view when discussing the difference between the current, coordinated approach and the future, connected approach.  This picture might create the wrong impression that there are two different worlds – either you are document-driven, or you are data-driven.

In the follow-up of this presentation, I explained that companies need both environments in the future. The most efficient way of working for operations will be infrastructure on the right side, the platform-based approach using connected information.

For traceability and disconnected information exchanges, the left side will be there for many years to come. Systems of Record are needed for data exchange with disconnected suppliers, disconnected regulatory bodies and probably crucial for configuration management.

The System of Record will probably remain as a capability in every platform or cross-section of platform information. The Systems of Engagement will be the configured real-time environment for anyone involved in active company processes, not only ERP or MES, all execution.

Introducing SysML and SML

This summer, I received a copy of Martin Eigner’s System Lifecycle Management book, which I am reading at his moment in my spare moments. I always enjoyed Martin’s presentations. In many ways, we share similar ideas. Martin from his profession spent more time on the academic aspects of product and system lifecycle than I. But, on the other hand, I have always been in the field observing and trying to make sense of what I see and learn in a coherent approach. I am halfway through the book now, and for sure, I will come back on the book when I have finished.

A first impression: A great and interesting book for all. Martin and I share the same history of data management. Read all about this in his second chapter: Forty Years of Product Data Management

From PDM via PLM to SysLM, is a chapter that everyone should read when you haven’t lived it yourself. It helps you to understand the past (Learning for the past to understand the future). When I finish this series about the model-based and connected approach for products and systems, Martin’s book will be highly complementary given the content he describes.

There is one point for which I am looking forward to is feedback from the readers of this blog.

Should we, in our everyday language, better differentiate between Product Lifecycle Management (PLM) and System Lifecycle Management(SysLM)?

In some customer situations, I talk on purpose about System Lifecycle Management to create the awareness that the company’s offering is more than an electro/mechanical product. Or ultimately, in a more circular economy, would we use the term Solution Lifecycle Management as not only hardware and software might be part of the value proposition?

Martin uses consistently the abbreviation SysLM, where I would prefer the TLA SLM. The problem we both have is that both abbreviations are not unique or explicit enough. SysLM creates confusion with SysML (for dyslectic people or fast readers). SLM already has so many less valuable meanings: Simulation Lifecycle Management, Service Lifecycle Management or Software Lifecycle Management.

For the moment, I will use the abbreviation SLM, leaving it in the middle if it is System Lifecycle Management or Solution Lifecycle Management.



How to implement both approaches?

In the long term, I predict that more than 80 percent of the activities related to SLM will take place in a data-driven, model-based environment due to the changing content of the solutions offered by companies.

A solution will be based on hardware, the solid part of the solution, for which we could apply a BOM-centric approach. We can see the BOM-centric approach in most current PLM implementations. It is the logical result of optimizing the product lifecycle management processes in a coordinated manner.

However, the most dynamic part of the solution will be covered by software and services. Changing software or services related to a solution has completely different dynamics than a hardware product.

Software and services implementations are associated with a data-driven, model-based approach.

The management of solutions, therefore, needs to be done in a connected manner. Using the BOM-centric approach to manage software and services would create a Kafkaesque overhead.

Depending on your company’s value proposition to the market, the challenge will be to find the right balance. For example, when you keep on selling disconnectedhardware, there is probably no need to change your internal PLM processes that much.

However, when you are moving to a connected business model providing solutions (connected systems / Outcome-based services), you need to introduce new ways of working with a different go-to-market mindset. No longer linear, but iterative.

A McKinsey concept, I have been promoting several times, illustrates a potential path – note the article was not written with a PLM mindset but in a business mindset.

What about Configuration Management?

The different datasets defining a solution also challenge traditional configuration management processes. Configuration Management (CM) is well established in the aerospace & defense industry. In theory, proper configuration management should be the target of every industry to guarantee an appropriate performance, reduced risk and cost of fixing issues.

The challenge, however, is that configuration management processes are not designed to manage systems or solutions, where dynamic updates can be applied whether or not done by the customer.

This is a topic to solve for the modern Connected Car (system) or Connected Car Sharing (solution)

For that reason, I am inquisitive to learn more from Martijn Dullaart’s presentation at the upcoming PLM Roadmap/PDT conference. The title of his session: The next disruption please …

In his abstract for this session, Martijn writes:

From Paper to Digital Files brought many benefits but did not fundamentally impact how Configuration Management was and still is done. The process to go digital was accelerated because of the Covid-19 Pandemic. Forced to work remotely was the disruption that was needed to push everyone to go digital. But a bigger disruption to CM has already arrived. Going model-based will require us to reexamine why we need CM and how to apply it in a model-based environment. Where, from a Configuration Management perspective, a digital file still in many ways behaves like a paper document, a model is something different. What is the deliverable? How do you manage change in models? How do you manage ownership? How should CM adopt MBx, and what requirements to support CM should be considered in the successful implementation of MBx? It’s time to start unraveling these questions in search of answers.

One of the ideas I am currently exploring is that we need a new layer on top of the current configuration management processes extending the validation to software and services. For example, instead of describing every validated configuration, a company might implement the regular configuration management processes for its hardware.

Next, the systems or solutions in the field will report (or validate) their configuration against validation rules. A topic that requires a long discussion and more than this blog post, potentially a full conference.

Therefore I am looking forward to participating in the CIMdata/PDT FALL conference and pick-up the discussions towards a data-driven, model-based future with the attendees.  Besides CM, there are several other topics of great interest for the future. Have a look at the agenda here



Conclusion

A data-driven and model-based infrastructure still need to be combined with a coordinated, document-driven infrastructure.  Where the focus will be, depends on your company’s value proposition.

If we discuss hardware products, we should think PLM. When you deliver systems, you should perhaps talk SysML (or SLM). And maybe it is time to define Solution Lifecycle Management as the term for the future.

Please, share your thoughts in the comments.



After a short summer break with almost no mentioning of the word PLM, it is time to continue this series of posts exploring the future of “connected” PLM. For those who also started with a cleaned-up memory, here is a short recap:

In part 1, I rush through more than 60 years of product development, starting from vellum drawings ending with the current PLM best practice for product development, the item-centric approach.

In part 2, I painted a high-level picture of the future, introducing the concept of digital platforms, which, if connected wisely, could support the digital enterprise in all its aspects. The five platforms I identified are the ERP and CRM platform (the oldest domains).

Next, the MES and PIP platform(modern domains to support manufacturing and product innovation in more detail) and the IoT platform (needed to support connected products and customers).

In part 3, I explained what is data-driven and how data-driven is closely connected to a model-based approach. Here we abandon documents (electronic files) as active information carriers. Documents will remain, however, as reports, baselines, or information containers. In this post, I ended up with seven topics related to data-driven, which I will discuss in upcoming posts.

Hopefully, by describing these topics – and for sure, there are more related topics – we will better understand the connected future and make decisions to enable the future instead of freezing the past.



Topic 1 for this post:

Data-driven does not imply, there needs to be a single environment, a single database that contains all information. As I mentioned in my previous post, it will be about managing connected datasets federated. It is not anymore about owned the data; it is about access to reliable data.



Platform or a collection of systems?

One of the first (marketing) hurdles to take is understanding what a data platform is and what is a collection of systems that work together, sold as a platform.

CIMdata published in 2017 an excellent whitepaper positioning the PIP (Product Innovation Platform):  Product Innovation Platforms: Definition, Their Role in the Enterprise, and Their Long-Term Viability. CIMdata’s definition is extensive and covers the full scope of product innovation. Of course, you can find a platform that starts from a more focused process.

For example, look at OpenBOM (focus on BOM collaboration), OnShape (focus on CAD collaboration) or even Microsoft 365 (historical, document-based collaboration).

The idea behind a platform is that it provides basic capabilities connected to all stakeholders, inside and outside your company. In addition, to avoid that these capabilities are limited, a platform should be open and able to connect with other data sources that might be either local or central available.

From these characteristics, it is clear that the underlying infrastructure of a platform must be based on a multitenant SaaS infrastructure, still allowing local data to be connected and shielded for performance or IP reasons.

The picture below describes the business benefits of a Product Innovation Platform as imagined by Accenture in 2014

Link to CIMdata’s 2014 commentary of Digital PLM HERE

Sometimes vendors sell their suite of systems as a platform. This is a marketing trick because when you want to add functionality to your PLM infrastructure, you need to install a new system and create or use interfaces with the existing systems, not really a scalable environment.

In addition, sometimes, the collaboration between systems in such a marketing platform is managed through proprietary exchange (file) formats.

A practice we have seen in the construction industry before cloud connectivity became available. However, a so-called end-to-end solution working on PowerPoint implemented in real life requires a lot of human intervention.



Not a single environment

There has always been the debate:

“Do I use best-in-class tools, supporting the end-user of the software, or do I provide an end-to-end infrastructure with more generic tools on top of that, focusing on ease of collaboration?”

In the system approach, the focus was most of the time on the best-in-class tools where PLM-systems provide the data governance. A typical example is the item-centric approach. It reflects the current working culture, people working in their optimized siloes, exchanging information between disciplines through (neutral) files.

The platform approach makes it possible to deliver the optimized user interface for the end-user through a dedicated app. Assuming the data needed for such an app is accessible from the current platform or through other systems and platforms.

It might be tempting as a platform provider to add all imaginable data elements to their platform infrastructure as much as possible. The challenge with this approach is whether all data should be stored in a central data environment (preferably cloud) or federated.  And what about filtering IP?

In my post PLM and Supply Chain Collaboration, I described the concept of having an intermediate hub (ShareAspace) between enterprises to facilitate real-time data sharing, however carefully filtered which data is shared in the hub.

It may be clear that storing everything in one big platform is not the future. As I described in part 2, in the end, a company might implement a maximum of five connected platforms (CRM, ERP, PIP, IoT and MES). Each of the individual platforms could contain a core data model relevant for this part of the business. This does not imply there might be no other platforms in the future. Platforms focusing on supply chain collaboration, like ShareAspace or OpenBOM, will have a value proposition too.  In the end, the long-term future is all about realizing a digital tread of information within the organization.

Will we ever reach a perfectly connected enterprise or society? Probably not. Not because of technology but because of politics and human behavior. The connected enterprise might be the most efficient architecture, but will it be social, supporting all humanity. Predicting the future is impossible, as Yuval Harari described in his book:  21 Lessons for the 21st Century. Worth reading, still a collection of ideas.



Proprietary data model or standards?

So far, when you are a software vendor developing a system, there is no restriction in how you internally manage your data. In the domain of PLM, this meant that every vendor has its own proprietary data model and behavior.

I have learned from my 25+ years of experience with systems that the original design of a product combined with the vendor’s culture defines the future roadmap. So even if a PLM vendor would rewrite all their software to become data-driven, the ways of working, the assumptions will be based on past experiences.

This makes it hard to come to unified data models and methodology valid for our PLM domain. However, large enterprises like Airbus and Boeing and the major Automotive suppliers have always pushed for standards as they will benefit the most from standardization.

The recent PDT conferences were an example of this, mainly the 2020 Fall conference. Several Aerospace & Defense PLM Action groups reported their progress.

You can read my impression of this event in The weekend after PLM Roadmap / PDT 2020 – part 1 and The next weekend after PLM Roadmap PDT 2020 – part 2.

It would be interesting to see a Product Innovation Platform built upon a data model as much as possible aligned to existing standards. Probably it won’t happen as you do not make money from being open and complying with standards as a software vendor. Still, companies should push their software vendors to support standards as this is the only way to get larger connected eco-systems.

I do not believe in the toolkit approach where every company can build its own data model based on its current needs. I have seen this flexibility with SmarTeam in the early days. However, it became an upgrade risk when new, overlapping capabilities were introduced, not matching the past.

In addition, a flexible toolkit still requires a robust data model design done by experienced people who have learned from their mistakes.

The benefit of using standards is that they contain the learnings from many people involved.



Conclusion

I did not like writing this post so much, as my primary PLM focus lies on people and methodology. Still, understanding future technologies is an important point to consider. Therefore, this time a not-so-exciting post. There is enough to read on the internet related to PLM technology; see some of the recent articles below. Enjoy



Matthias Ahrens shared:  Integrated Product Lifecycle Management (Google translated from German)

Oleg Shilovitsky wrote numerous articles related to technology –
in this context:
3 Challenges of Unified Platforms and System Locking and
SaaS PLM Acceleration Trends

My previous post introducing the concept of connected platforms created some positive feedback and some interesting questions. For example, the question from Maxime Gravel:

Thank you, Jos, for the great blog. Where do you see Change Management tool fit in this new Platform ecosystem?

is one of the questions I try to understand too. You can see my short comment in the comments here. However, while discussing with other experts in the CM-domain, we should paint the path forward. Because if we cannot solve this type of question, the value of connected platforms will be disputable.

It is essential to realize that a digital transformation in the PLM domain is challenging. No company or vendor has the perfect blueprint available to provide an end-to-end answer for a connected enterprise. In addition, I assume it will take 10 – 20 years till we will be familiar with the concepts.

It takes a generation to move from drawings to 3D CAD. It will take another generation to move from a document-driven, linear process to data-driven, real-time collaboration in an iterative manner.  Perhaps we can move faster, as the Automotive, Aerospace & Defense, and Industrial Equipment industries are not the most innovative industries at this time. Other industries or startups might lead us faster into the future.

Although I prefer discussing methodology, I believe before moving into that area, I need to clarify some more technical points before moving forward. My apologies for writing it in such a simple manner. This information should be accessible for the majority of readers.

What means data-driven?

I often mention a data-driven environment, but what do I mean precisely by that. For me, a data-driven environment means that all information is stored in a dataset that contains a single aspect of information in a standardized manner, so it becomes accessible by outside tools.

A document is not a dataset, as often it includes a collection of datasets. Most of the time, the information it is exposed to is not standardized in such a manner a tool can read and interpret the exact content. We will see that a dataset needs an identifier, a classification, and a status.

An identifier to be able to create a connection between other datasets – traceability or, in modern words, a digital thread.
A classification as the classification identifier will determine the type of information the dataset contains and potential a set of mandatory attributes

A status to understand if the dataset is stable or still in work.

Examples of a data-driven approach – the item

The most common dataset in the PLM world is probably the item (or part) in a Bill of Material. The identifier is the item number (ID + revision if revisions are used). Next, the classification will tell you the type of part it is.

Part classification can be a topic on its own, and every industry has its taxonomy.

Finally, the status is used to identify if the dataset is shareable in the context of other information (released, in work, obsolete), allowing tools to expose only relevant information.

In a data-driven manner, a part can occur in several Bill of Materials – an example of a single definition consumed in other places.

When the part information changes, the accountable person has to analyze the relations to the part, which is easy in a data-driven environment. It is normal to find this functionality in a PDM or ERP system.

When the part would change in a document-driven environment, the effort is much higher.

First, all documents need to be identified where this part occurs. Then the impact of change needs to be managed in document versions, which will lead to other related changes if you want to keep the information correct.

Examples of a data-driven approach – the requirement

Another example illustrating the benefits of a data-driven approach is implementing requirements management, where requirements become individual datasets.  Often a product specification can contain hundreds of requirements, addressing the needs of different stakeholders.

In addition, several combinations of requirements need to be handled by other disciplines, mechanical, electrical, software, quality and legal, for example.

As requirements need to be analyzed and ranked, a specification document would never be frozen. Trade-off analysis might lead to dropping or changing a single requirement. It is almost impossible to manage this all in a document, although many companies use Excel. The disadvantages of Excel are known, in particular in a dynamic environment.

The advantage of managing requirements as datasets is that they can be grouped. So, for example, they can be pushed to a supplier (as a specification).

Or requirements could be linked to test criteria and test cases, without the need to manage documents and make sure you work with them last updated document.

As you will see, also requirements need to have an Identifier (to manage digital relations), a classification (to allow grouping) and a status (in work / released /dropped)

Data-driven and Models – the 3D CAD model

3D PDF Model

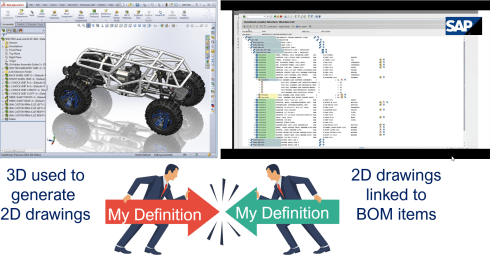

When I launched my series related to the model-based approach in 2018, the first comments I got came from people who believed that model-based equals the usage of 3D CAD models – see Model-based – the confusion. 3D Models are indeed an essential part of a model-based infrastructure, as the 3D model provides an unambiguous definition of the physical product. Just look at how most vendors depict the aspects of a virtual product using 3D (wireframe) models.

Although we use a 3D representation at each product lifecycle stage, most companies do not have a digital continuity for the 3D representation. Design models are often too heavy for visualization and field services support. The connection between engineering and manufacturing is usually based on drawings instead of annotated models.

I wrote about modern PLM and Model-Based Definition, supported by Jennifer Herron from Action Engineering – read the post PLM and Model-Based Definition here.

If your company wants to master a data-driven approach, this is one of the most accessible learning areas. You will discover that connecting engineering and manufacturing requires new technology, new ways of working and much more coordination between stakeholders.

Implementing Model-Based Definition is not an easy process. However, it is probably one of the best steps to get your digital transformation moving. The benefits of connected information between engineering and manufacturing have been discussed in the blog post PLM and Model-Based Definition

Essential to realize all these exciting capabilities linked to Industry 4.0 require a data-driven, model-based connection between engineering and manufacturing.

If this is not the case, the projected game-changers will not occur as they become too costly.

Data-driven and mathematical models

To manage complexity, we have learned that we have to describe the behavior in models to make logical decisions. This can be done in an abstract model, purely based on mathematical equations and relations. For example, suppose you look at climate models, weather models or COVID infections models.

In that case, we see they all lead to discussions from so-called experts that believe a model should be 100 % correct and any exception shows the model is wrong.

It is not that the model is wrong; the expectations are false.

For less complex systems and products, we also use models in the engineering domain. For example, logical models and behavior models are all descriptive models that allow people to analyze the behavior of a product.

For example, how software code impacts the product’s behavior. Usually, we speak about systems when software is involved, as the software will interact with the outside world.

There can be many models related to a product, and if you want to get an impression, look at this page from the SEBoK wiki: Types of Models. The current challenge is to keep the relations between these models by sharing parameters.

The sharable parameters then again should be datasets in a data-driven environment. Using standardized diagrams, like SysML or UML,  enables the used objects in the diagram to become datasets.

I will not dive further into the modeling details as I want to remain at a high level.

Essential to realize digital models should connect to a data-driven infrastructure by sharing relevant datasets.

What does data-driven imply?



I want to conclude this time with some statements to elaborate on further in upcoming posts and discussions

  1. Data-driven does not imply there needs to be a single environment, a single database that contains all information. Like I mentioned in my previous post, it will be about managing connected datasets in a federated manner. It is not anymore about owned the data; it is about access to reliable data.
  2. Data-driven does not mean we do not need any documents anymore. Read electronic files for documents. Likely, document sets will still be the interface to non-connected entities, suppliers, and regulatory bodies. These document sets can be considered a configuration baseline.
  3. Data-driven means that we need to manage data in a much more granular manner. We have to look different at data ownership. It becomes more data accountability per role as the data can be used and consumed throughout the product lifecycle.
  4. Data-driven means that you need to have an enterprise architecture, data governance and a master data management (MDM) approach. So far, the traditional PLM vendors have not been active in the MDM domain as they believe their proprietary data model is leading. Read also this interesting McKinsey article: How enterprise architects need to evolve to survive in a digital world
  5. A model-based approach with connected datasets seems to be the way forward. Managing data in documents will become inefficient as they cannot contribute to any digital accelerator, like applying algorithms. Artificial Intelligence relies on direct access to qualified data.
  6. I don’t believe in Low-Code platforms that provide ad-hoc solutions on demand. The ultimate result after several years might be again a new type of spaghetti. On the other hand, standardized interfaces and protocols will probably deliver higher, long-term benefits. Remember: Low code: A promising trend or a Pandora’s Box?
  7. Configuration Management requires a new approach. The current methodology is very much based on hardware products with labor-intensive change management. However, the world of software products has different configuration management and change procedure. Therefore, we need to merge them in a single framework. Unfortunately, this cannot be the BOM framework due to the dynamics in software changes. An interesting starting point for discussion can be found here: Configuration management of industrial products in PDM/PLM



Conclusion

Again, a long post, slowly moving into the future with many questions and points to discuss. Each of the seven points above could be a topic for another blog post, a further discussion and debate.

After my summer holiday break in August, I will follow up. I hope you will join me in this journey by commenting and contributing with your experiences and knowledge.









So far, I have been discussing PLM experiences and best practices that have changed due to introducing electronic drawings and affordable 3D CAD systems for the mainstream. From vellum to PDM to item-centric PLM to manage product designs and manufacturing specifications.

Although the technology has improved, the overall processes haven’t changed so much. As a result, disciplines could continue to work in their own comfort zone, most of the time hidden and disconnected from the outside world.

Now, thanks to digitalization, we can connect and format information in real-time. Now we can provide every stakeholder in the company’s business to have almost real-time visibility on what is happening (if allowed). We have seen the benefits of platformization, where the benefits come from real-time connectivity within an ecosystem.

Apple, Amazon, Uber, Airbnb are the non-manufacturing related examples. Companies are trying to replicate these models for other businesses, connecting the concept owner (OEM ?), with design and manufacturing (services), with suppliers and customers. All connected through information, managed in data elements instead of documents – I call it connected PLM

Vendors have already shared their PowerPoints, movies, and demos from how the future would be in the ideal world using their software. The reality, however, is that implementing such solutions requires new business models, a new type of organization and probably new skills.

The last point is vital, as in schools and organizations, we tend to teach what we know from the past as this gives some (fake) feeling of security.

The reality is that most of us will have to go through a learning path, where skills from the past might become obsolete; however, knowledge of the past might be fundamental.

In the upcoming posts, I will share with you what I see, what I deduct from that and what I think would be the next step to learn.

I firmly believe connected PLM requires the usage of various models. Not only the 3D CAD model, as there are so many other models needed to describe and analyze the behavior of a product.

I hope that some of my readers can help us all further on the path of connected PLM (with a model-based approach). This series of posts will be based on the max size per post (avg 1500 words) and the ideas and contributes coming from you and me.

What is platformization?

In our day-to-day life, we are more and more used to direct interaction between resellers and services providers on one side and consumers on the other side. We have a question, and within 24 hours, there is an answer. We want to purchase something, and potentially the next day the goods are delivered. These are examples of a society where all stakeholders are connected in a data-driven manner.

We don’t have to create documents or specialized forms. An app or a digital interface allows us to connect. To enable this type of connectivity, there is a need for an underlying platform that connects all stakeholders. Amazon and Salesforce are examples for commercial activities, Facebook for social activities and, in theory, LinkedIn for professional job activities.

The platform is responsible for direct communication between all stakeholders.

The same applies to businesses. Depending on the products or services they deliver, they could benefit from one or more platforms. The image below shows five potential platforms that I identified in my customer engagements. Of course, they have a PLM focus (in the middle), and the grouping can be made differently.

Five potential business platforms

The 5 potential platforms

The ERP platform
is mainly dedicated to the company’s execution processes – Human Resources, Purchasing, Finance, Production scheduling, and potentially many more services. As platforms try to connect as much as possible all stakeholders. The ERP platform might contain CRM capabilities, which might be sufficient for several companies. However, when the CRM activities become more advanced, it would be better to connect the ERP platform to a CRM platform. The same logic is valid for a Product Innovation Platform and an ERP platform.  Examples of ERP platforms are SAP and Oracle (and they will claim they are more than ERP)

Note: Historically, most companies started with an ERP system, which is not the same as an ERP platform.  A platform is scalable; you can add more apps without having to install a new system. In a platform, all stored data is connected and has a shared data model.

The CRM platform

a platform that is mainly focusing on customer-related activities, and as you can see from the diagram, there is an overlap with capabilities from the other platforms. So again, depending on your core business and products, you might use these capabilities or connect to other platforms. Examples of CRM platforms are Salesforce and Pega, providing a platform to further extend capabilities related to core CRM.

The MES platform
In the past, we had PDM and ERP and what happened in detail on the shop floor was a black box for these systems. MES platforms have become more and more important as companies need to trace and guide individual production orders in a data-driven manner. Manufacturing Execution Systems (and platforms) have their own data model. However, they require input from other platforms and will provide specific information to other platforms.

For example, if we want to know the serial number of a product and the exact production details of this product (used parts, quality status), we would use an MES platform. Examples of MES platforms (none PLM/ERP related vendors) are Parsec and Critical Manufacturing

The IoT platform

these platforms are new and are used to monitor and manage connected products. For example, if you want to trace the individual behavior of a product of a process, you need an IoT platform. The IoT platform provides the product user with performance insights and alerts.

However, it also provides the product manufacturer with the same insights for all their products. This allows the manufacturer to offer predictive maintenance or optimization services based on the experience of a large number of similar products.  Examples of IoT platforms (none PLM/ERP-related vendors) are Hitachi and Microsoft.

The Product Innovation Platform (PIP)

All the above platforms would not have a reason to exist if there was not an environment where products were invented, developed, and managed. The Product Innovation Platform PIP – as described by CIMdata  -is the place where Intellectual Property (IP) is created, where companies decide on their portfolio and more.

The PIP contains the traditional PLM domain. It is also a logical place to manage product quality and technical portfolio decisions, like what kind of product platforms and modules a company will develop. Like all previous platforms, the PIP cannot exist without other platforms and requires connectivity with the other platforms is applicable.

Look below at the CIMdata definition of a Product Innovation Platform.

You will see that most of the historical PLM vendors aiming to be a PIP (with their different flavors): Aras, Dassault Systèmes, PTC and Siemens.

Of course, several vendors sell more than one platform or even create the impression that everything is connected as a single platform. Usually, this is not the case, as each platform has its specific data model and combining them in a single platform would hurt the overall performance.

Therefore, the interaction between these platforms will be based on standardized interfaces or ad-hoc connections.

Standard interfaces or ad-hoc connections?

Suppose your role and information needs can be satisfied within a single platform. In that case, most likely, the platform will provide you with the right environment to see and manipulate the information.

However, it might be different if your role requires access to information from other platforms. For example, it could be as simple as an engineer analyzing a product change who needs to know the actual stock of materials to decide how and when to implement a change.

This would be a PIP/ERP platform collaboration scenario.

Or even more complex, it might be a product manager wanting to know how individual products behave in the field to decide on enhancements and new features. This could be a PIP, CRM, IoT and MES collaboration scenario if traceability of serial numbers is needed.

The company might decide to build a custom app or dashboard for this role to support such a role. Combining in real-time data from the relevant platforms, using standard interfaces (preferred) or using API’s, web services, REST services, microservices (for specialists) and currently in fashion Low-Code development platforms, which allow users to combine data services from different platforms without being an expert in coding.

Without going too much in technology, the topics in this paragraph require an enterprise architecture and vision. It is opportunistic to think that your existing environment will evolve smoothly into a digital highway for the future by “fixing” demands per user. Your infrastructure is much more likely to end up congested as spaghetti.

In that context, I read last week an interesting post Low code: A promising trend or Pandora’s box. Have a look and decide for yourself

I am less focused on technology, more on methodology. Therefore, I want to come back to the theme of my series: The road to model-based and connected PLM. For sure, in the ideal world, the platforms I mentioned, or other platforms that run across these five platforms, are cloud-based and open to connect to other data sources. So, this is the infrastructure discussion.

In my upcoming blog post, I will explain why platforms require a model-based approach and, therefore, cause a challenge, particularly in the PLM domain.

It took us more than fifty years to get rid of vellum drawings. It took us more than twenty years to introduce 3D CAD for design and engineering. Still primarily relying on drawings. It will take us for sure one generation to switch from document-based engineering to model-based engineering.

Conclusion

In this post, I tried to paint a picture of the ideal future based on connected platforms. Such an environment is needed if we want to be highly efficient in designing, delivering, and maintaining future complex products based on hardware and software. Concepts like Digital Twin and Industry 4.0 require a model-based foundation.

In addition, we will need Digital Twins to reach our future sustainability goals efficiently. So, there is work to do.

Your opinion, Your contribution?













In March 2018, I started a series of blog posts related to model-based approaches. The first post was:  Model-Based – an introduction.  The reactions to these series of posts can be summarized in two bullets:

  • Readers believed that the term model-based was focusing on the 3D CAD model. A logical association as PLM is often associated with 3D CAD-model data management (actually PDM), and in many companies, the 3D CAD model is (yet) not a major information carrier/
  • Readers were telling me that a model-based approach is too far from their day-to-day life. I have to agree here. I was active in some advanced projects where the product’s behavior depends on a combination of hardware and software. However, most companies still work in a document-driven, siloed discipline manner merging all deliverables in a BOM.

More than 3 years later, I feel that model-based approaches have become more and more visible for companies. One of the primary reasons is that companies start to collaborate in the cloud and realize the differences between a coordinated and a connected manner.

Initiatives as Industry 4.0 or concepts like the Digital Twin demand a model-based approach. This post is a follow-up to my recent post, The Future of PLM.

History has shown that it is difficult for companies to change engineering concepts. So let’s first look back at how concepts slowly changed.

The age of paper drawings

In the sixties of the previous century, the drawing board was the primary “tool” to specify a mechanical product. The drawing on its own was often a masterpiece drawn on special paper, with perspectives, details, cross-sections.

All these details were needed to transfer the part or assembly information to manufacturing. The drawing set should contain all information as there were no computers.

Making a prototype was, depending on the complexity of the product, the interpretation of the drawings and manufacturability of a product, not always that easy.  After a first release, further modifications to the product definition were often marked on the manufacturing drawings using a red pencil. Terms like blueprint and redlining come from the age of paper drawings.

There are still people talking nostalgically about these days as creating and interpreting drawings was an important skill. However, the inefficiencies with this approach were significant.

  • First, updating drawings because there was redlining in manufacturing was often not done – too much work.
  • Second, drawing reuse was almost impossible; you had to start from scratch.
  • Third, and most importantly, you needed to be very skilled in interpreting a drawing set. In particular, when dealing with suppliers that might not have the same skillset and the knowledge of which drawing version was actual.

However, paper was and still is the cheapest neutral format to distribute designs. The last time I saw companies still working with paper drawings was at the end of the previous century.

Curious to learn if they are now extinct?

The age of electronic drawings (CAD)

With the introduction of AutoCAD and personal computers around 1982, more companies started to look into drafting with the computer. There was already the IBM drafting system in 1965, but it was Autodesk that pushed the 2D drafting business with their slogan:

“80 percent of the functionality for 20 percent of the price (Autodesk 1982)”

A little later, I started to work for an Autodesk distributor/reseller. People would come to the showroom to see how a computer drawing could be plotted in the finest quality at the end. But, of course, the original draftsman did not like the computer as the screen was too small.

However, the enormous value came from making changes, the easy way of sharing drawings and the ease of reuse. The picture on the left is me in 1989, demonstrating AutoCAD with a custom-defined tablet and PS/2 computer.

The introduction of electronic drawings was not a disruption, more optimization of the previous ways of working.

The exchange with suppliers and manufacturing could still be based on plotted drawings – the most neutral format. And thanks to the filename, there was better control of versions between all stakeholders.

Aren’t we all happy?

The introduction of mainstream 3D CAD

In 1995,  3D CAD became available for the mid-market, thanks to SolidWorks, Solid Edge and a little later Inventor. Before that working with 3D CAD was only possible for companies that could afford expensive graphic stations, provided by IBM, Silicon Graphics, DEC and SUN. Where are they nowadays? The PC is an example of disruptive innovation, purely based on technology. See Clayton Christensen’s famous book: The Innovator’s Dilemma.

The introduction of 3D CAD on PCs in the mid-market did not lead directly to new ways of working. Designing a product in 3D was much more efficient if you mastered the skills. 3D brought a better understanding of the product dimensions and shape, reducing the number of interpretation errors.

Still, (electronic) drawings were the contractual deliverable when interacting with suppliers and manufacturing.  As students were more and more trained with the 3D CAD tools, the traditional art of the draftsman disappeared.

3D CAD introduced some new topics to solve.

  • First of all, a 3D CAD Assembly in the system was a collection of separate files, subassemblies, parts, and drawings that relate to each other with a specific version. So how to ensure the final assembly drawings were based on the correct part revisions? Companies were solving this by either using intelligent filenames (with revisions) or by using a PDM system where the database of the PDM system managed all the relations and their status.
  • The second point was that the 3D CAD assembly also introduced a new feature, the product structure, or the “Bill of Materials”. This logical structure of the assembly up resembled a lot of the Bill of Material of the product. You could even browse deeper levels, which was not the case in the traditional Bill of Material on a drawing.

Note: The concept of EBOM and MBOM was not known in most companies. People were talking about the BOM as a one-level definition of parts or subassemblies in the assembly. See my Where is the MBOM? Post from July 2008 when this topic was still under discussion.

  • The third point that would have a more significant impact later is that parts and assemblies could be reused in other products. This introduced the complexity of configuration management. For example, a 3D CAD part or assembly file could contain several configurations where only one configuration would be valid for the given product. Managing this in the 3D CAD system lead to higher productivity of the designer, however downstream when it came to data management with PDM systems, it became a nightmare.

I experienced these issues a lot when discussing with companies and implementers, mainly the implementation of SmarTeam combined with SolidWorks and Inventor. Where to manage the configuration constraints? In the PDM system or inside the 3D CAD system.

These environments were not friends (image above), and even if they came from the same vendor, it felt like discussing with tribes.

The third point also covered another topic. So far, CAD had been the first step for the detailed design of a product. However, companies now had an existing Bill of Material in the system thanks to the PDM systems. It could be a Bill of Material of a sub-assembly that is used in many other products.

Configuring a product no longer started from CAD; it started from a Product or Bill of Material structure. Sales and Engineers identified the changes needed on the BoM, keeping as much as possible released information untouched. This led to a new best practice.

The item-centric approach

Around 2005, five years after introducing the term Product Lifecycle Management, slowly, a new approach became the standard. Product Lifecycle Management was initially introduced to connect engineering and manufacturing, driven by the automotive and aerospace industry.

It was with PLM that concepts as EBOM and MBOM became visible.

In particular, the EBOM was closely linked to engineering practices, i.e., modularity and reuse. The EBOM and its related information represented the product as it was specified. It is essential to realize that the parts in the EBOM could be generic specified purchase parts to be resolved when producing the product or that the EBOM contained Make-parts specified by drawings.

At that time, the EBOM was often used as the foundation for the ERP system – see image above. The BOM was restructured and organized according to the manufacturing process specifying materials and resources needed in the ERP system. Therefore, although it was an item-like structure, this BOM (the MBOM) always had a close relation to the Bill of Process.

For companies with a single manufacturing site, the notion of EBOM and MBOM was not that big, as the ERP system would be the source of the MBOM. However, the complexity came when companies have several manufacturing sites. That was when a generic MBOM in the PLM system made more sense to centralize all product information in a single system.

The EBOM-MBOM approach has become more and more a standard practice since 2010. As a result, even small and medium-sized enterprises realized a need to manage the EBOM and the MBOM.

There were two disadvantages introduced with this EBOM-MBOM approach.

  • First, the EBOM and the MBOM as information structures require a lot of administrative maintenance if information needs to be always correct (and that is the CM target).  Some try to simplify this by keeping the EBOM part the same as the MBOM part, meaning the EBOM specification already targets a single supplier or manufacturer.
  • The second disadvantage of making every item in the BOM behave like a part creates inefficiencies in modern environments. Products are a mix of hardware(parts) and software(models/behavior). This BOM-centric view does not provide the proper infrastructure for a data-driven approach as part specifications are still done in drawings. We need 3D annotated models related to all kinds of other behavior and physical models to specify a product that contains hard-and software.

A new paradigm is needed to manage this mix efficiently, the enabling foundation for Industry 4.0 and efficient Digital Twins; there is a need for a model-based approach based on connected data elements.

More next week.

Conclusion

The age of paper drawings 1960 – now dead
The age of electronic drawings 1982 – potentially dead in 2030
The mainstream 3D CAD 1995 – to be evolving through MBD and MBSE to the future – not dead shortly
Item-centric approach 2005 – to be evolving to a connected model-based approach – not dead shortly

One of my favorite conferences is the PLM Road Map & PDT conference. Probably because in the pre-COVID days, it was the best PLM conference to network with peers focusing on PLM practices, standards, and sustainability topics. Now the conference is virtual, and hopefully, after the pandemic, we will meet again in the conference space to elaborate on our experiences further.

Last year’s fall conference was special because we had three days filled with a generic PLM update and several A&D (Aerospace & Defense) working groups updates, reporting their progress and findings. Sessions related to the Multiview BOM researchGlobal Collaboration, and several aspects of Model-Based practices: Model-Based Definition, Model-Based Engineering & Model-Based Systems engineering.

All topics that I will elaborate on soon. You can refresh your memory through these two links:

This year, it was a two-day conference with approximately 200 attendees discussing how emerging technologies can disrupt the current PLM landscape and reshape the PLM Value Equation. During the first day of the conference, we focused on technology.

On the second day, we looked in addition to the impact new technology has on people and organizations.

Today’s Emerging Trends & Disrupters

Peter Bilello, CIMdata’s President & CEO, kicked off the conference by providing CIMdata observations of the market. An increasing number of technology capabilities, like cloud, additive manufacturing, platforms, digital thread, and digital twin, all with the potential of realizing a connected vision. Meanwhile, companies evolve at their own pace, illustrating that the gap between the leaders and followers becomes bigger and bigger.

Where is your company? Can you afford to be a follower? Is your PLM ready for the future? Probably not, Peter states.

Next, Peter walked us through some technology trends and their applicability for a future PLM, like topological data analytics (TDA), the Graph Database, Low-Code/No-Code platforms, Additive Manufacturing, DevOps, and Agile ways of working during product development. All capabilities should be related to new ways of working and updated individual skills.

I fully agreed with Peter’s final slide – we have to actively rethink and reshape PLM – not by calling it different but by learning, experimenting, and discussing in the field.

Digital Transformation Supporting Army Modernization

An interesting viewpoint related to modern PLM came from Dr. Raj Iyer, Chief Information Officer for IT Reform from the US Army. Rai walked us through some of the US Army’s challenges, and he gave us some fantastic statements to think about. Although an Army cannot be compared with a commercial business, its target remains to be always ahead of the competition and be aware of the competition.

Where we would say “data is the new oil”, Rai Iyer said: “Data is the ammunition of the future fight – as fights will more and more take place in cyberspace.”

The US Army is using a lot of modern technology – as the image below shows. The big difference here with regular businesses is that it is not about ROI but about winning fights.

Also, for the US Army, the cloud becomes the platform of the future. Due to the wide range of assets, the US Army has to manage, the importance of product data standards is evident.  – Rai mentioned their contribution and adherence to the ISO 10303 STEP standard crucial for interoperability. It was an exciting insight into the US Army’s current and future challenges. Their primary mission remains to stay ahead of the competition.

Joining up Engineering Data without losing the M in PLM

Nigel Shaw’s (Eurostep) presentation was somehow philosophical but precisely to the point what is the current dilemma in the PLM domain.  Through an analogy of the internet, explaining that we live in a world of HTTP(s) linking, we create new ways of connecting information. The link becomes an essential artifact in our information model.

Where it is apparent links are crucial for managing engineering data, Nigel pointed out some of the significant challenges of this approach, as you can see from his (compiled) image below.

I will not discuss this topic further here as I am planning to come back to this topic when explaining the challenges of the future of PLM.

As Nigel said, they have a debate with one of their customers to replace the existing PLM tools or enhance the existing PLM tools. The challenge of moving from coordinated information towards connected data is a topic that we as a community should study.

Integration is about more than Model Format.

This was the presentation I have been waiting for. Mark Williams from Boeing had built the story together with Adrian Burton from Airbus. Nigel Shaw, in the previous session, already pointed to the challenge of managing linked information. Mark elaborated further about the model-based approach for system definition.

All content was related to the understanding that we need a  model-based information infrastructure for the future because storing information in documents (the coordinated approach) is no longer viable for complex systems. Mark ‘slide below says it all.

Mark stressed the importance of managing model information in context, and it has become a challenge.

Mark mentioned that 20 years ago, the IDC (International Data Corporation) measured Boeing’s performance and estimated that each employee spent 2 ½ hours per day. In 2018, the IDC estimated that this number has grown to 30 % of the employee’s time and could go up to 50 % when adding the effort of reusing and duplicating data.

The consequence of this would be that a full-service enterprise, having engineering, manufacturing and services connected, probably loses 70 % of its information because they cannot find it—an impressive number asking for “clever” ways to find the correct information in context.

It is not about just a full indexed search of the data, as some technology geeks might think. It is also about describing and standardizing metadata that describes the models. In that context, Mark walked through a list of existing standards, all with their pros and cons, ending up with the recommendation to use the ISO 10303-243 – MoSSEC standard.

MoSSEC standing for Modelling and Simulation information in a collaborative Systems Engineering Context to manage and connect the relationships between models.

MoSSEC and its implication for future digital enterprises are interesting, considering the importance of a model-based future. I am curious how PLM Vendors and tools will support and enable the standard for future interoperability and collaboration.

Additive Manufacturing
– not as simple as paper printing – yet

Andreas Graichen from Siemens Energy closed the day, coming back to the new technologies’ topic: Additive Manufacturing or in common language 3D Printing. Andreas shared their Additive Manufacturing experiences, matching the famous Gartner Hype Cycle. His image shows that real work needs to be done to understand the technology and its use cases after the first excitement of the hype is over.

Material knowledge was one of the important topics to study when applying additive manufacturing. It is probably a new area for most companies to understand the material behaviors and properties in an Additive Manufacturing process.

The ultimate goal for Siemens Energy is to reach an “autonomous” workshop anywhere in the world where gas turbines could order their spare parts by themselves through digital warehouses. It is a grand vision, and Andreas confirmed that the scalability of Additive Manufacturing is still a challenge.

For rapid prototyping or small series of spare parts, Additive Manufacturing might be the right solution. The success of your Additive Manufacturing process depends a lot on how your company’s management has realistic expectations and the budget available to explore this direction.

Conclusion

Day 1 was enjoyable and educational, starting and ending with a focus on disruptive technologies. The middle part related to data the data management concepts needed for a digital enterprise were the most exciting topics to follow up in my opinion.

Next week I will follow up with reviewing day 2 and share my conclusions. The PLM Road Map & PDT Spring 2021 conference confirmed that there is work to do to understand the future (of PLM).



Regularly (young) individuals approach me looking for advice to start or boost their PLM career. One of the questions the PLM Doctor is IN quickly could answer.

Before going further on this topic, there is also the observation that many outspoken PLM experts are “old.” Meanwhile, all kinds of new disruptive technologies are comping up.

Can these old guys still follow and advise on all trends/hypes?

My consultant’s answer is: “Yes and No” or “It depends”.

The answer illustrates the typical nature of a consultant. It is almost impossible to give a binary answer; still, many of my clients are looking for binary answers. Generalizing further, you could claim: “Human beings like binary answers”, and then you understand what is happening now in the world.

The challenge for everyone in the PLM domain is to keep an open mindset and avoid becoming binary. Staying non-binary means spending time to digest what you see, what you read or what you hear. Ask yourself always the question: Is it so simple? Try to imagine how the content you read fits in the famous paradigm: People, Processes and Tools. It would help if you considered all these aspects.

Learning by reading

I was positively surprised by Helena Gutierrez’s post on LinkedIn: The 8 Best PLM blogs to follow. First of all, Helena’s endorsement, explaining the value of having non-academic PLM information available as a foundation for her learnings in PLM.

And indeed, perhaps I should have written a book about PLM. However, it would be a book about the past. Currently, PLM is not stable; we are learning every day to use new technologies and new ways of working. For example, the impact and meaning of model-based enterprise.

However, the big positive surprise came from the number of likes within a few days, showing how valuable this information is for many others on their PLM journey. I am aware there are more great blogs out in the field, sometimes with the disadvantage that they are not in English and therefore have a limited audience.

Readers of this post, look at the list of 8 PLM blogs and add your recommended blog(s) in the comments.

Learning by reading (non-binary) is a first step in becoming or staying up to date.

Learning by listening

General PLM conferences have been an excellent way to listen to other people’s experiences in the past. Depending on the type of conference, you would be able to narrow your learning scope.

This week I started my preparation for the upcoming PLM Roadmap and PDT conference. Here various speakers will provide their insight related to “disruption,” all in the context of disruptive technologies for PLM.

Good news, also people and business aspects will be part of the conference.

Click on the image for the agenda and registration

My presentation with the title: DISRUPTION – EXTINCTION or still EVOLUTION? I will address all these aspects. We have entered a decisive decade to prove we can disrupt our old habits to save the planet for future generations.

It is challenging to be interactive as a physical conference; it is mainly a conference to get inspired or guided in your thinking about new PLM technologies and potential disruption.

Learning by listening and storing the content in your brain is the second step in becoming or staying up to date.

Learning by discussing

One of the best learnings comes from having honest discussions with other people who all have different backgrounds. To be part of such a discussion, you need to have at least some basic knowledge about the topic. This avoids social media-like discussions where millions of “experts” have an opinion behind the keyboard. (The Dunning-Kruger effect)

There are two upcoming discussions I want to highlight here.

1. Book review: How to Avoid a Climate Disaster.

On Thursday, May 13th, I will moderate a PLM Global Green Alliance panel discussion on Zoom to discuss Bill Gates’ book: “How to Avoid a Climate Disaster”. As you can imagine, Bill Gates is not known as a climate expert, more as a philanthrope and technology geek. However, the reviews are good.

What can we learn from the book as relevant for our PLM Global Green Alliance?

If you want to participate, read all the details on our PGGA website.

The PGGA core team members, Klaus Brettschneider, Lionel Grealou, Richard McFall, Ilan Madjar and Hannes Lindfred, have read the book.



2. The Modular Way Questions & Answers

In my post PLM and Modularity, I announced the option for readers of “The Modular Way” to ask the authors (Björn Eriksson & Daniel Strandhammar) or provide feedback on the book together with a small audience. This session is also planned to take place in May and to be scheduled based on the participants’ availability. At this moment, there are still a few open places. Therefore if you have read the book and want to participate, send an email to tacit@planet.nl or info@brickstrategy.com.

Learning by discussing is the best way to enrich your skills, particularly if you have Active Listening skills – crucial to have for a good discussion.



Conclusion

No matter where you are in your career, in the world of PLM, learning never stops. Twenty years of experience have no value if you haven’t seen the impact of digitalization coming. Make sure you learn by reading, by listening and by discussing.

For a year, we are now used to virtual events. PI PLMx 2020 in London was my last real event where I met people. When rereading my post about this event (the weekend after PI PLMx), I wrote that it was not a technology festival. Many presentations were about business change and how to engage people in an organization.

The networking discussions during the event and evenings were the most valuable parts of the conference.

And then came COVID-19. ☹

Shortly after, in April 2020, I participated in the TECHNIA Innovation Forum, which was the first virtual conference with a setup like a conference. A main stage, with live sessions, virtual booths, and many prerecorded sessions related to various PLM topics.

You can read my experience related to the conference in two posts: the weekend after PLMIF and My four picks from PLMIF. A lot of content available for 30 days. However, I was missing the social interaction, the people.

My favourite conference for 2020 was the CIMdata PLM Roadmap / PDT Fall 2020 conference in November. The PLM Roadmap/PDT conferences are not conferences for a novice audience; you have to be skilled in the domain of PLM most of the time with a strong presence from Aerospace and Defense companies.

The Fall 2020 theme: “Digital Thread—the PLM Professionals’ Path to Delivering Innovation, Efficiency, and Quality” might sound like a marketing term.

We hear so many times the words Digital Thread and Digital Twin. However, this conference was with speakers, active practitioners, from the field.  I wrote about this conference in two posts: The weekend after PLM Roadmap / PDT 2020 – Part 1 and Part 2. I enjoyed the conference; however, I was missing social interaction.

The Digital Twin

Beyond the marketing hype, there is still a lot to learn and discuss from each other. First of all, it is not about realizing a digital twin; a business need should be the driver to investigate the possibility of a digital twin.

I am preparing a longer blog post on this topic to share learnings from people in the field. For example, in November 2020, I participated in the Netherlands in a Digital Twin Conference, focusing on real-life cases.

Companies shared their vision and successes.  It was clear that we are all learning to solve pieces of the big puzzle; there are small successes. However, without marketing language, this type of event becomes extremely helpful for further discussion and follow-up.

Recently, I enjoyed the panel discussions during the PI DX Spotlight session: Digital Twin-Driven Design. The PI DX Spotlight sessions are a collection of deep dives in various themes – have a look for the upcoming schedule here.

In the Digital Twin-Driven Design session, I enjoyed the session: What does a Digital Twin mean to your Business and Defining Requirements?

The discussion was moderated by Peter Bilello, with three interesting panellists with different industrial backgrounds. (Click on the image for the details). I have to re-watch some of the Spotlight sessions (the beauty of a virtual event) to see how they fit in the planned Digital Twin post.





The Cenit/Keonys Innovation day

On March 23rd (this Tuesday), Cenit & Keonys launch their virtual Innovation Day, another event that, before COVID-19, would have been a real people event. I am mentioning this event in particular, as I was allowed to interview fifteen of their customers about their day-to-day work, PLM-related plans, and activities.

All these interviews have been recorded and processed in such a manner that within 5 to 8 minutes, you get an understanding of what people are doing.

To prepare for these interviews, I spoke with each of them before the interview. I wanted to understand the passion for their work and where our interests overlap.

I will not mention the individual interviews in this post, as I do not want to spoil the event. I talked with various startups (do they need PLM?)  and established companies that started a PLM journey. I spoke with simulation experts (the future) and dimensional management experts (listen to these interviews to understand what it means). And ultimately, I interviewed a traditional porcelain family brand using 3D printing and 3D design, and at the other end, the German CIO of the year from 2020

(if you Google a little, you will easily find the companies involved here)

The most common topics discussed were:

  • What was the business value of your PLM-related activity?
  • Did COVID-19 impact your business?
  • What about a cloud-based solution, and how do people align?
  • If relevant, what are your experiences with a Model-Based Definition?
  • What about sustainability?

I hope you will take the opportunity to register and watch these interviews as, for me, they were an excellent opportunity to be in touch with the reality in the field. As always, we keep on learning.

The Modular Way

Talking about learning. This week, I finished the book The Modular Way, written by Bjorn Eriksson & Daniel Strandhammar.  During the lockdown last year, Bjorn & Daniel, founders of the Brick Strategy, decided to write down their experiences with mainly Scandinavian companies into a coherent framework to achieve modularization.

Modularity is a popular topic in many board meetings. How often have you heard:  “We want to move from Engineering To Order to more Configure To Order”? Or another related incentive: “We need to be cleverer with our product offering and reduced the number of different parts”.

Next, the company buys a product that supports modularity, and management believes the work has been done. Of course, not. Modularity requires a thoughtful strategy.

Illustration from the book: The Modular Way

The book can be a catalyst for such companies that want to invest in modularity but do not know where and how to start. The book is not written academically. It is more a story taking you along the steps needed to define, implement, and maintain modularity. Every step has been illustrated by actual cases and their business motivation and achieved benefits where possible. I plan to come back with Bjorn and Daniel in a dedicated post related to PLM and Modularity.

Conclusion

Virtual Events are probably part of our new future. A significant advantage is the global reach of such events. Everyone can join from anywhere connected around the world. Besides the larger events, I look forward to discovering more small and targeted discussion events like PI DX Spotlights. The main challenge for all – keep it interactive and social.

Let us know your favourite virtual event !!

PLM and Complementary domains/practices

After “The PLM Doctor is IN #2,” now again a written post in the category of PLM and complementary practices/domains.

After PLM and Configuration Lifecycle ManagementCLM (January 2021) and PLM and Configuration Management CM (February 2021), now it is time to address the third interesting topic:
PLM and Supply Chain collaboration.

In this post, I am speaking with Magnus Färneland from Eurostep, a company well known in my PLM ecosystem, through their involvement in standards (STEP and PLCS), the PDT conferences, and their PLM collaboration hub, ShareAspace.

Supply Chain collaboration

The interaction between OEMs and their suppliers has been a topic of particular interest to me. As a warming-up, read my post after CIMdata/PDT Roadmap 2020:  PLM and the Supply Chain. In this post, I briefly touched on the Eurostep approach – having a Supply Chain Collaboration Hub. Below an image from that post – in this case, the Collaboration Hub is positioned between two OEMs.

Slide: PDT Europe 2016 RENAULT PLM Challenges

Recently Eurostep shared a blog post in the same context: 3 Steps to remove data silos from your supply chain addressing the dreams of many companies: moving from disconnected information silos towards a logical flow of data. This topic is well suited for all companies in the digital transformation process with their supply chain. So, let us hear it from Eurostep.

Eurostep – the company / the mission

First of all, can you give a short introduction to Eurostep as a company and the unique value you are offering to your clients?


Eurostep was founded in 1994 by several world-class experts on product data and information management. In the year 2000, we started developing ShareAspace. We took all the experience we had from working with collaboration in the extended enterprise, mixed it with our standards knowledge, and selected Microsoft as the technology for our software platform.

We now offer ShareAspace as a solution for product information collaboration in all three industry verticals where we are active: Manufacturing, Defense and AEC & Plant.

In the Manufacturing offering – the Supply Chain Collaboration Hub

ShareAspace is based on an information standard called PLCS (ISO 10300-239). This means we have a data model covering the complete life cycle of a product from requirements and conceptual design to an existing installed base. We have added things needed, such as consolidation and security. Our partnership with Microsoft has also resulted in ShareAspace being available in Azure as a service (our Design to Manufacturing software).



Why a supply chain collaboration hub?

Currently, most suppliers work in a disconnected manner with their clients – sending files up and down or the need to work inside the OEM environment. What are the reasons to consider a supply chain collaboration hub or, as you call it, a product information collaboration solution?

The hub concept is not new per se. There are plenty of examples of file sharing hubs. Once you realize that sending files back and forth by email is a disaster for keeping control of your information being shared with suppliers, you would probably try out one of the available file-sharing alternatives.

However, after a while, you begin to realize that a file share can be quite time consuming to keep up to date. Files are being changed. Files are being removed! Some files are enormous, and you realize that you only need a fraction of what is in the file. References within one file to another file becomes corrupt because the other file is of a new version. Etc. Etc.

This is about the time when you realize that you need similar control of the data you share with suppliers as you have in your internal systems. If not better.

A hub allows all partners to continue to use their internal tools and processes. It is also a more secure way of collaboration as the suppliers and partners are not let into the internal systems of the OEM.

Another significant side effect of this is that you only expose the data in the hub intended for external sharing and avoid sharing too much or exposing internal sensitive data.

A hub is also suitable for business flexibility as partners are not hardwired with the OEM. Partners can change, and IT systems in the value chain can change without impacting more than the single system’s connecting to the hub.

Should every company implement a supply chain collaboration hub?

Based on your experience, what types of companies should implement a supply chain collaboration hub and what are the expected benefits?



The large OEMs and 1st tier suppliers certainly benefit from this since they can incorporate hundreds, if not thousands, of suppliers. Sharing technical data across the supply chain from a dedicated hub will remove confusions, improve control of the shared data, and build trust with their partners.

With our cloud-based offering, we now also make it possible for at least mid-sized companies (like 200+ employees) to use ShareAspace. They may not have a well-adopted PLM system or the issues of communicating complex specifications originating from several internal sources. However still, they need to be professional in dealing with suppliers.

The smallest client we have is a manufacturer of pool cleaners, a complex product with many suppliers. The company Weda [www.weda.se] has less than 10 employees, and they use ShareAspace as SaaS. With ShareAspace, they have improved their collaboration process with suppliers and cut costs and lowered inventory levels.

ShareAspace can really scale big. It serves as a collaboration solution for the two new Aircraft carriers in the UK, the QUEEN ELIZABETH class. The aircraft carriers were built by a consortium that was closed in early 2020.

ShareAspace is being used to hold the design data and other documentation from the consortium to be available to the multiple organizations (both inside and outside of the Ministry of Defence) that need controlled access.



What is the dependency on standards?

I always associate Eurostep with the PLCS (ISO 10303-239) standard, providing an information model for “hardware” products along the lifecycle. How important is this standard for you in the context of your ShareAspace offering?
Should everyone adapt to this standard?

We have used PLCS to define the internal data schema in ShareAspace. This is an excellent starting point for capturing information from different systems and domains and still getting it to fit together. Why invent something new?

However, we can import data in most formats, and it does not have to be according to a standard. When connecting to Teamcenter, Windchill, Enovia, SAP, Oracle, Maximo etc., it is more often in a proprietary format than according to any standards.

Capital Facilities Information HandOver Specification (CFHOS) exchange

On the other hand, in some industries like Defense, standards-based data exchange is required and put into contracts. Sometimes it prescribes PLCS.  For the plant industry, it could be CFIHOS or ISO15926.

Supply Chain Collaboration and digital transformation

As stated at the beginning of this post, digital transformation is about connecting the information siloes through a digital thread. How important is this related to the supply chain?

Many companies have come a long way in improving their internal management of product data. But still, the exchange and sharing of data with the external world has considerable potential for improvement. Just look at the chaos everyone has experienced with emails, still used a lot, in finding the latest Word document or PowerPoint file. Imagine if you collaborate on a ship, a truck, a power plant, or a piece of complex infrastructure. FTP is not the answer, and for product data, Dropbox is not doing the trick.

A Digital Thread must support versions and changes in all directions, as changes are natural with reasonably advanced products. Much of the information created about or around a product is generated within the supply chain, like production parameters, test and inspection protocols, certifications, and more. Without an intelligent way of capturing this data, companies will continue to spend a fortune on administration trying to manage this manually.

As the Digital Thread extends across the value chain, a useful sharing tool is needed to allow for configuration management across the complete chain – ShareAspace is designed for this. The great thing with PLCS is that it gives a standard model for the Digital Thread covering several Digital Twins. PLCS adds the life cycle component, which is essential, and there is no alternative. Therefore, we are welcome with ShareAspace and PLCS to add capabilities to snapshot standards like IFC etc., that are outside the STEP series of standards.

Learning more

We discussed that a supply chain collaboration hub can have specific value to a company. Where can readers learn more?

There is a lot of information available. Of course, on our Eurostep website, you will find information under the tab Resources or on the ShareAspace website under the tab News.
Other sources are:

CIMdata A Controlled and Protected Partner and Supplier Collaboration Environment
Boston Consulting Group Share to Gain: Unlocking Data Value in Manufacturing
Eurostep Data sharing and collaboration across global value chains worth 100 Billion USD is waiting for you!
McKinsey Digital supply chains: Do you have the skills to run them?



What I have learned

  • I am surprised to see that the type of Supplier Collaboration Platform delivered by Eurostep is not a booming market. Where Time to Market is significantly impacted by how companies work with their suppliers, most companies still rely on the exchange of data packages.
  • The most advanced exchanges are using a model-based definition if relevant. Traditional PLM Vendors will not develop such platforms as the platform needs to be agnostic in both directions.
  • Having a recommended data model based on PLCS or a custom-data model in case of a large OEM can provide such a collaboration hub. Relative easy to implement (as you do not change your own PLM) and relatively easy to scale (adding a new supplier is easy).  For me, the supplier collaboration platform is a must in a modern, digital connected enterprise.

Conclusion

A lot of marketing money is spent on “Digital Thread” or “Digital Continuity”.  If you are looking at the full value chain of product development and operational support, there are still many manual hand-over processes with suppliers. A supplier collaboration hub might be the missing piece of the puzzle to realize a real digital thread or continuity.

After the first episode of “The PLM Doctor is IN“, this time a question from Helena Gutierrez. Helena is one of the founders of SharePLM, a young and dynamic company focusing on providing education services based on your company’s needs, instead of leaving it to function-feature training.

I might come back on this topic later this year in the context of PLM and complementary domains/services.

Now sit back and enjoy.

Note: Due to a technical mistake Helena’s mimic might give you a “CNN-like” impression as the recording of her doctor visit was too short to cover the full response.

PLM and Startups – is this a good match?



Relevant links discussed in this video

Marc Halpern (Gartner): The PLM maturity table

VirtualDutchman: Digital PLM requires a Model-Based Enterprise



Conclusion

I hope you enjoyed the answer and look forward to your questions and comments. Let me know if you want to be an actor in one of the episodes.
The main rule: A single open question that is puzzling you related to PLM.

Translate

Email subscription to this blog

Categories

%d bloggers like this:
