During my holiday I have read some interesting books. Some for the beauty of imagination and some to enrich my understanding of the human brain.
Why the human brain? It is the foundation and motto of my company: The Know-How to Know Now.
In 2012 I wrote a post: Our brain blocks PLM acceptance followed by a post in 2014 PLM is doomed, unless …… both based on observations and inspired by the following books (must read if you are interested in more than just PLM practices and technology):
- The Innovator’s Dilemma by Clayton Christensen
- On Intelligence by Jeff Hawkins
- Thinking, Fast and Slow by Daniel Kahneman
In 2014, Digital Transformation was not so clear. We talked about disruptors, but disruption happened outside our PLM comfort zone.
Now six years later disruption or significant change in the way we develop and deliver solutions to the market has become visible in the majority of companies. To stay competitive or meaningful in a global market with changing customer demands, old ways of working no longer bring enough revenue to sustain. The impact of software as part of the solution has significantly changed the complexity and lifecycle(s) of solutions on the market.
Most of my earlier posts in the past two years are related to these challenges.
What is blocking Model-Based Definition?
This week I had a meeting in the Netherlands with three Dutch peers all interested and involved in Model-Based Definition – either from the coaching point of view or the “victim” point of view. We compared MBD-challenges with Joe Brouwer’s AID (Associated Information Documents) approach and found a lot of commonalities.
No matter which method you use it is about specifying unambiguously how a product should be manufactured – this is a skill and craftsmanship and not a technology. We agreed that a model-based approach where information (PMI) is stored as intelligent data elements in a Technical Data Package (TPD) will be crucial for multidisciplinary usage of a 3D Model and its associated information.
If we would store the information again as dumb text in a view, it will need human rework leading to potential parallel information out of sync, therefore creating communication and quality issues. Unfortunate as it was a short meeting, the intention is to follow-up this discussion in the Netherlands to a broader audience. I believe this is what everyone interested in learning and understanding the needs and benefits of a model-based approach (unavoidable) should do. Get connected around the table and share/discuss.
We realized that human beings indeed are often the blocking reason why new ways of working cannot be introduced. Twenty-five years ago we had the discussion moving from 2D to 3D for design. Now due to the maturity of the solutions and the education of new engineers this is no longer an issue. Now we are in the next wave using the 3D Model as the base for manufacturing definition, and again a new mindset is needed.
There are a few challenges here:
- MBD is still in progress – standards like AP242 still needs enhancements
- There is a lack of visibility on real reference stories to motivate others.
(Vendor-driven stories often are too good to be true or too narrow in scope) - There is no education for (modern) business processes related to product development and manufacturing. Engineers with new skills are dropped in organizations with traditional processes and silo thinking.
Educate, or our brain will block the future!
The above points need to be addressed, and here the human brain comes again into the picture. Our unconscious, reptile brain is continuously busy to spend a least amount of energy as described in Thinking, Fast and Slow. Currently, I am reading the Idiot Brain: What Your Head Is Really Up To by Dean Burnett, another book confirming that our brain is not a logical engine making wise decisions
And then there is the Dunning-Kruger effect, explaining that the people with the lowest skills often have the most outspoken opinion and not even aware of this flaw. We see this phenomenon in particular now in social media where people push their opinion as if they are facts.
So how can we learn new model-based approaches and here I mean all the model-based aspects I have discussed recently, i.e., Model-Based Systems Engineering, Model-Based Definition/ Model-Based Enterprise and the Digital Twin? We cannot learn it from a book, as we are entering a new era.
First, you might want to understand there is a need for new ways of working related to complex products. If you have time, listen to Xin Guo Zhang’s opening keynote with the title: Co-Evolution of Complex Aeronautical Systems & Complex SE. It takes 30 minutes so force yourself to think slow and comprehend the message related to the needed paradigm shift for systems engineering towards model-based systems engineering
Also, we have to believe that model-based is the future. If not, we will find for every issue on our path a reason not to work toward the ultimate goal.
You can see this in the comments of my earlier post on LinkedIn, where Sami Grönstrand writes:
I warmly welcome the initiative to “clean up” these concepts (It is time to clean up our model-based problem and above all, await to see live examples of transformations — even partial — coupled with reasonable business value identification.
There are two kinds of amazing places: those you have first to see before you can believe they exist.
And then those kinds that you have to believe in first before you can see them…
And here I think we need to simplify en enhance the Model-Based myth as according to Yuval Harari in his book Sapiens, the power of the human race came from creating myths to align people to have long-term, forward-looking changes accepted by our reptile brain. We are designed to believe in myths. Therefore, the need for a Model-based myth.In my post PLM as a myth? from 2017, I discussed this topic in more detail.
Conclusion
There are so many proof points that our human brain is not as reliable as we think it is. Knowing less about these effects makes it even harder to make progress towards a digital future. This post with all its embedded links can keep your brain active for a few hours. Try it, avoid to think fast and avoid assuming you know it all. Your thoughts?
Learning & Discussing more?
Still time to register for CIMdata PLM Roadmap and PDT Europe
At this moment we are in the middle of the year. Usually for me a quiet time and a good time to reflect on what has happened so far and to look forward.
Three themes triggered me to write this half-year:
- The changing roles of (PLM) consultancy
- The disruptive effect of digital transformation on legacy PLM
- The Model-driven approaches
A short summary per theme here with links to the original posts for those who haven’t followed the sequence.
The changing roles of (PLM) consultancy
Triggered by Oleg Shilovitsky’s post Why traditional PLM ranking is dead. PLM ranking 2.0 a discussion started related to the changing roles of PLM choice and the roles of a consultant. Oleg and I agreed that using the word dead in a post title is a way to catch extra attention. And as many people do not read more than the introduction, this is a way to frame ideas (not invented by us, look at your newspaper and social media posts). Please take your time and read this post till the end.
Oleg and I concluded that the traditional PLM status reports provided by consultancy firms are no longer is relevant. They focus on the big vendors, in a status-quo and most of them are 80 % the same on their core PLM capabilities. The challenge comes in how to select a PLM approach for your company.
Here Oleg and I differ in opinion. I am more looking at PLM from a business transformation point of view, how to improve your business with new ways of working. The role of a consultant is crucial here as the consultant can help to formalize the company’s vision and areas to focus on for PLM. The value of the PLM consultant is to bring experience from other companies instead of inventing new strategies per company. And yes, a consultant should get paid for this added value.
Oleg believes more in the bottom-up approach where new technology will enable users to work differently and empower themselves to improve their business (without calling it PLM). More or less concluding there is no need for a PLM consultant as the users will decide themselves about the value of the selected technology. In the context of Oleg’s position as CEO/Co-founder of OpenBOM, it is a logical statement, fighting for the same budget.
The discussion ended during the PLMx conference in Hamburg, where Oleg and I met with an audience recorded by MarketKey. You can find the recording Panel Discussion: Digital Transformation and the Future of PLM Consulting here.
Unfortunate, like many discussions, no conclusion. My conclusion remains the same – companies need PLM coaching !
The related post to this topic are:
The disruptive effect of digital transformation on legacy PLM
A topic that I have discussed the past two years is that current PLM is not compatible with a modern data-driven PLM. Note: data-driven PLM is still “under-development”. Where in most companies the definition of the products is stored in documents / files, I believe that in order to manage the complexity of products, hardware and software in the future, there is a need to organize data related to models not to files. See also: From Item-centric to model-centric ?
For a company it is extremely difficult to have two approaches in parallel as the first reaction is: “let’s convert the old data to the new environment”.
This statement has been proven impossible in most of the engagements I am involved in and here I introduced the bimodal approach as a way to keep the legacy going (mode 1) and scale-up for the new environment (mode 2).
A bimodal approach is sometimes acceptable when the PLM software comes from two different vendors. Sometimes this is also called the overlay approach – the old system remains in place and a new overlay is created to connect the legacy PLM system and potentially other systems like ALM or MBSE environments. For example some of the success stories for Aras complementing Siemens PLM.
Like the bimodal approach the overlay approach creates the illusion that in the near future the old legacy PLM will disappear. I partly share that illusion when you consider the near future a period of 5 – 10+ years depending on the company’s active products. Faster is not realistic.
And related to bimodal, I now prefer to use the terminology used by McKinsey: our insights/toward an integrated technology operating model in the context of PLM.
The challenge is that PLM vendors are reluctant to support a bimodal approach for their own legacy PLM as then suddenly this vendor becomes responsible for all connectivity between mode 1 and mode 2 data – every vendors wants to sell only the latest.
I will elaborate on this topic during the PDT Europe conference in Stuttgart – Oct 25th . No posts on this topic this year (yet) as I am discussing, learning and collecting examples from the field. What kept me relative busy was the next topic:
The Model-driven approaches
Most of my blogging time I spent on explaining the meaning behind a modern model-driven approach and its three main aspects: Model-Based Systems Engineering, Model-Based Definition and Digital Twins. As some of these aspects are still in the hype phase, it was interesting to see the two different opinions are popping up. On one side people claiming the world is still flat (2D), considering model-based approaches just another hype, caused by the vendors. There is apparently no need for digital continuity. If you look into the reactions from certain people, you might come to the conclusion it is impossible to have a dialogue, throwing opinions is not a discussion..
One of the reasons might be that people reacting strongly have never experienced model-based efforts in their life and just chime in or they might have a business reason not to agree to model-based approached as it does not align with their business? It is like the people benefiting from the climate change theory – will the vote against it when facts are known ? Just my thoughts.
There is also another group, to which I am connected, that is quite active in learning and formalizing model-based approaches. This in order to move forward towards a digital enterprise where information is connected and flowing related to various models (behavior models, simulation models, software models, 3D Models, operational models, etc., etc.) . This group of people is discussing standards and how to use and enhance them. They discuss and analyze with arguments and share lessons learned. One of the best upcoming events in that context is the joined CIMdata PLM Road Map EMEA and the PDT Europe 2018 – look at the agenda following the image link and you should get involved too – if you really care.
And if you are looking into your agenda for a wider, less geeky type of conference, consider the PI PLMx CHICAGO 2018 conference on Nov 5 and 6. The agenda provides a wider range of sessions, however I am sure you can find the people interested in discussing model-based learnings there too, in particular in this context Stream 2: Supporting the Digital Value Chain
My related posts to model-based this year were:
- Model-Based – an introduction
- Why Model-Based? The 3D CAD Model
- Model-Based – The Confusion
- Model-Based: Systems Engineering (MBSE)
- Model-Based – Connecting Engineering and Manufacturing
- Model-Based – The Digital Twin
- Model-Based: Digital Twin – the PLM side
Conclusion
I spent a lot of time demystifying some of PLM-related themes. The challenge remains, like in the non-PLM world, that it is hard to get educated by blog posts as you might get over-informed by (vendor-related) posts all surfing somewhere on the hype curve. Do not look at the catchy title – investigate and take time to understand HOW things will this work for you or your company. There are enough people explaining WHAT they do, but HOW it fit in a current organization needs to be solved first. Therefore the above three themes.
This is my concluding post related to the various aspects of the model-driven enterprise. We went through Model-Based Systems Engineering (MBSE) where the focus was on using models (functional / logical / physical / simulations) to define complex product (systems). Next we discussed Model Based Definition / Model-Based Enterprise (MBD/MBE), where the focus was on data continuity between engineering and manufacturing by using the 3D Model as a master for design, manufacturing and eventually service information.
And last time we looked at the Digital Twin from its operational side, where the Digital Twin was applied for collecting and tuning physical assets in operation, which is not a typical PLM domain to my opinion.
Now we will focus on two areas where the Digital Twin touches aspects of PLM – the most challenging one and the most over-hyped areas I believe. These two areas are:
- The Digital Twin used to virtually define and optimize a new product/system or even a system of systems. For example, defining a new production line.
- The Digital Twin used to be the virtual replica of an asset in operation. For example, a turbine or engine.
Digital Twin to define a new Product/System
There might be some conceptual overlap if you compare the MBSE approach and the Digital Twin concept to define a new product or system to deliver. For me the differentiation would be that MBSE is used to master and define a complex system from the R&D point of view – unknown solution concepts – use hardware or software? Unknown constraints to be refined and optimized in an iterative manner.
In the Digital Twin concept, it is more about a defining a system that should work in the field. How to combine various systems into a working solution and each of the systems has already a pre-defined set of behavioral / operational parameters, which could be 3D related but also performance related.
You would define and analyze the new solution virtual to discover the ideal solution for performance, costs, feasibility and maintenance. Working in the context of a virtual model might take more time than traditional ways of working, however once the models are in place analyzing the solution and optimizing it takes hours instead of weeks, assuming the virtual model is based on a digital thread, not a sequential process of creating and passing documents/files. Virtual solutions allow a company to optimize the solution upfront instead of costly fixing during delivery, commissioning and maintenance.
Why aren’t we doing this already? It takes more skilled engineers instead of cheaper fixers downstream. The fact that we are used to fixing it later is also an inhibitor for change. Management needs to trust and understand the economic value instead of trying to reduce the number of engineers as they are expensive and hard to plan.
In the construction industry, companies are discovering the power of BIM (Building Information Model) , introduced to enhance the efficiency and productivity of all stakeholders involved. Massive benefits can be achieved if the construction of the building and its future behavior and maintenance can be optimized virtually compared to fixing it in an expensive way in reality when issues pop up.
The same concept applies to process plants or manufacturing plants where you could virtually run the (manufacturing) process. If the design is done with all the behavior defined (hardware-in-the-loop simulation and software-in-the-loop) a solution has been virtually tested and rapidly delivered with no late discoveries and costly fixes.
Of course it requires new ways of working. Working with digital connected models is not what engineering learn during their education time – we have just started this journey. Therefore organizations should explore on a smaller scale how to create a full Digital Twin based on connected data – this is the ultimate base for the next purpose.
Digital Twin to match a product/system in the field
When you are after the topic of a Digital Twin through the materials provided by the various software vendors, you see all kinds of previews what is possible. Augmented Reality, Virtual Reality and more. All these presentations show that clicking somewhere in a 3D Model Space relevant information pops-up. Where does this relevant information come from?
Most of the time information is re-entered in a new environment, sometimes derived from CAD but all the metadata comes from people collecting and validating data. Not the type of work we promote for a modern digital enterprise. These inefficiencies are good for learning and demos but in a final stage a company cannot afford silos where data is collected and entered again disconnected from the source.
The main problem: Legacy PLM information is stored in documents (drawings / excels) and not intended to be shared downstream with full quality.
Read also: Why PLM is the forgotten domain in digital transformation.
If a company has already implemented an end-to-end Digital Twin to deliver the solution as described in the previous section, we can understand the data has been entered somewhere during the design and delivery process and thanks to a digital continuity it is there.
How many companies have done this already? For sure not the companies that are already a long time in business as their current silos and legacy processes do not cater for digital continuity. By appointing a Chief Digital Officer, the journey might start, the biggest risk the Chief Digital Officer will be running another silo in the organization.
So where does PLM support the concept of the Digital Twin operating in the field?
For me, the IoT part of the Digital Twin is not the core of a PLM. Defining the right sensors, controls and software are the first areas where IoT is used to define the measurable/controllable behavior of a Digital Twin. This topic has been discussed in the previous section.
The second part where PLM gets involved is twofold:
- Processing data from an individual twin
- Processing data from a collection of similar twins
Processing data from an individual twin
Data collected from an individual twin or collection of twins can be analyzed to extract or discover failure opportunities. An R&D organization is interested in learning what is happening in the field with their products. These analyses lead to better and more competitive solutions.
Predictive maintenance is not necessarily a part of that. When you know that certain parts will fail between 10.000 and 20.000 operating hours, you want to optimize the moment of providing service to reduce downtime of the process and you do not want to replace parts way too early.
The R&D part related to predictive maintenance could be that R&D develops sensors inside this serviceable part that signal the need for maintenance in a much smaller time from – maintenance needed within 100 hours instead of a bandwidth of 10.000 hours. Or R&D could develop new parts that need less service and guarantee a longer up-time.
For an R&D department the information from an individual Digital Twin might be only relevant if the Physical Twin is complex to repair and downtime for each individual too high. Imagine a jet engine, a turbine in a power plant or similar. Here a Digital Twin will allow service and R&D to prepare maintenance and simulate and optimize the actions for the physical world before.
The five potential platforms of a digital enterprise
The second part where R&D will be interested in, is in the behavior of similar products/systems in the field combined with their environmental conditions. In this way, R&D can discover improvement points for the whole range and give incremental innovation. The challenge for this R&D organization is to find a logical placeholder in their PLM environment to collect commonalities related to the individual modules or components. This is not an ERP or MES domain.
Concepts of a logical product structure are already known in the oil & gas, process or nuclear industry and in 2017 I wrote about PLM for Owners/Operators mentioning Bjorn Fidjeland has always been active in this domain, you can find his concepts at plmPartner here or as an eLearning course at SharePLM.
To conclude:
- This post is way too long (sorry)
- PLM is not dead – it evolves into one of the crucial platforms for the future – The Product Innovation Platform
- Current BOM-centric approach within PLM is blocking progress to a full digital thread
More to come after the holidays (a European habit) with additional topics related to the digital enterprise
Model-based continued: Model-Based Definition
After a short celebration, 10 years blogging and 200 posts, now it is time to continue my series related to the future of model-based. So far my introduction and focus on the bigger picture of the term Model-Based has led to various reactions. In particular, related to Model-Based Definition, the topic I am going to discuss in this post. Probably this is the topic where opinions vary the most as it is more close to the classical engineering and manufacturing processes.
What is Model-Based Definition?
There are various definitions of the term Model-Based Definition. Often the term Model-Based Enterprise is used in the same context. Where some people might stop thinking because the terminology is not 100 % aligned, I propose to focus on content. Let’s investigate what it is.
In the classical product lifecycle, a product is first designed for its purpose based on specifications. The product can be simple, purely mechanical or more complex, requiring mechanical design, electronic components, and software to work together. For the first case, I will focus on Model-Based definition, for the second case I recommend to start reading about Model-Based Systems Engineering approaches where the mechanical design is part of a more complex system.
Model-Based Definition for Mechanical Designs – the role of 2D
Historically designs were done on the drawing board in 2D. After the introduction of 2D CAD and later affordable 3D CAD systems at the end of the previous century, companies made a shift from designing in 2D towards 3D. The advantages were clear. A much better understanding of products. Reading a 2D drawing requires special skills and sometimes they were not unambiguous. Therefore, 3D CAD models lead to increased efficiency and quality combined with the potential to reuse and standardize parts or sub-assemblies in a design.
These benefits were not always observed as complementary to the design (the engineering point of view), there was still the need to describe and define how a product needs to be manufactured. The manufacturing definition remained in a set of 2D drawings, and the 2D Drawings were the legal authority describing the product.
An interesting side note observation:
You will still see in industrial machinery companies, a pure EBOM does not exist, as designs were made to target the manufacturing drawings, not the 3D Model, engineering focused, intent. In this type of companies, the discussion EBOM/MBOM is challenging to explain.
Once the 3D Model becomes the authority, the split between design and manufacturing information will create extra work if you keep on creating 2D drawings for manufacturing. It requires non-value added extra work, i.e., reinterpreting 3D data in 2D formats (extra engineering hours) and there is the risk for new errors (interpretations/versioning issues). This non-value added engineering time can add up to over 30 percent of the time spent by engineering. You can find these numbers through the links below this post. I will not be the MBD teacher in this post, I will focus on the business impact.
Model-Based Definition based on 3D
3D PDF Model
The logical step is to use the 3D Model and add manufacturing information attached to the model, through different views. This can be Geometric Dimensioning and Tolerancing information (GF&T), Quality measurement information, Assembly instructions and more, all applied to different views of the model.
Of course here you become dependent on the chosen environments that support the combination of a 3D CAD model combined with annotation views that can be selected in the context of the model. There are existing standards how to annotate a model, find your most practical standard to your industry / Eco-system. Next, most CAD vendors and PLM vendors have their proprietary 3D formats and when you stay within their solution range working with a model-based definition will bring direct benefits, however …..
Model-Based Definition data standards
Every company needs to be able to combine and share information internally with other teams or with partners and suppliers, so a single vendor solution is a utopia. Even if your company has standardized themselves to one system, the next acquisition might be disturbing this dream. Anticipating for openness is crucial and when you start working according to a model-based definition, make sure that at least you have import or export capabilities from within your environment towards model-based definition standards.

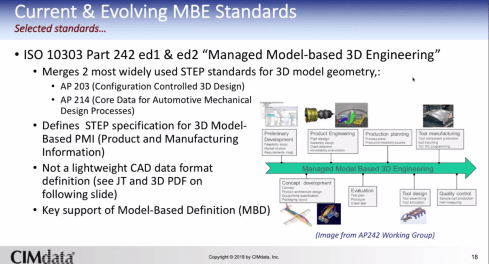

The two major standards for model-based definition are 3DPDF and AP242/JT based. Don’t expect these standards to be complete. They will give you a good foundation for your model-based journey and make sure you are part of this journey. (Listen to the CIMdata webinar also listed below)
The Model-Based journey
It took almost 20 years for 3D CAD to become the mainstream for mechanical design. Engineers are now trained in 3D and think in 3D. Now it is time to start the journey to abandon 2D and connect engineering, manufacturing and service more efficient. Similar gains can be expected. Follow the links below this article, here already a quote from an old post by Isha Gupta Ray (Capgemini) related to MBD:
MBE Drivers: The need for consumption of 3D product data by non-engineering departments and the elimination of 2D drawing related rework and costs are driving companies to adopt 3D MBE methods rapidly. DoD predicts that the move away from 2D Drawings and into open and free-to-view 3D MBE documents will reduce the cost of its internal engineering activities by up to 30%, reduce the scrap and rework it currently deals with from its supply channel by nearly 20% and improves supplier response times by up to 50%.
Conclusion
Model-Based Definition is not as challenging as becoming a Model-Driven enterprise, that I described in my introduction post to this theme. It is a first step to challenge or energize your company to become a digital enterprise, as sharing between engineering and manufacturing needs to be orchestrated, even with your external parties. It is easy to do nothing and to wait till your company is pushed or pushed out, which would cause extra stress (or relieve forever). For me Model-Based Definition is a first (baby) step towards a digital enterprise, warming-up your company to change a look at your data in a different way. Next when you combine parameters and simulation to your models, you will make the next step towards a model-driven digital enterprise.
Below a selection of links related to the theme of Model-Based Definition. If you feel I missed some crucial links, please provide them through the comments section of this post, and I will add them to the post if relevant.
Tech-Clarity: The How-to Guide for Adopting Model Based Definition (MBD)
Action Engineering: Articles, Blog plus training
Engineering.com: How Model-Based Definition Can Fix Your CAD Models
Lifecycle Insights: Quantifying the value of Model-Based definitions
CIMdata: Webinar on Model-Based Definition and Standards
Capgemini: Model-Based Enterprise with 3D PDF
if you want to learn more in-depth the advanced usage and potential of MBD, try to understand:
A month ago I announced to write a series of posts related to the various facets of Model-Based. As I do not want to write a book for a limited audience, I still believe blog posts are an excellent way to share knowledge and experience to a wider audience. Remember PLM is about sharing!
There are three downsides to this approach:
- you have to chunk the information into pieces; my aim is not to exceed 1000 words per post
- Isolated posts can be taken out of context (in a positive or negative way)
- you do not become rich and famous for selling your book
Model-Based ways of working are a hot topic and crucial for a modern digital enterprise. The modern digital enterprise does not exist yet to my knowledge, but the vision is there. Strategic consultancy firms are all active exploring and explaining the potential benefits – I have mentioned McKinsey / Accenture / Capgemini before.
In the domain of PLM, there is a bigger challenge as here we are suffering from the fact that the word “Model” immediately gets associated with a 3D Model. In addition to the 3D CAD Model, there is still a lot of useful legacy data that does not match with the concepts of a digital enterprise. I wrote and spoke about this topic a year ago. Among others at PI 2017 Berlin and you can check this presentation on SlideShare: How digital transformation affects PLM
Back to the various aspects of Model-Based
My first post: Model-Based – an introduction described my intentions what I wanted to explain. I got some interesting feedback and insights from my readers . Some of the people who responded understood that the crucial characteristic of the model-based enterprise is to use models to master a complex environment. Business Models, Mathematical Models, System Models are all part of a model-based enterprise, and none of them have a necessary relation to the 3D CAD model.
Why Model-Based?
Because this is an approach to master complex environments ! If you are studying the concepts for a digital enterprise model, it is complex. Artificial intelligence, predictive actions all need a model to deliver. The interaction and response related to my first blog post did not show any problems – only a positive mindset to further explore. For example, if you read this blog post from Contact, you will see the message came across very well: Model-Based in Model-Based Systems Engineering – what’s up ?
Where the confusion started
My second post: Why Model-Based? The 3D CAD Model was related to model-based, focusing on the various aspects related to the 3D CAD model, without going into all the details. In particular, in the PLM world, there is a lot of discussion around Model-Based Design or Model-Based Definition, where new concepts are discussed to connect engineering and manufacturing in an efficient and modern data-driven way. Lifecycle Insights, Action Engineering, Engineering.com, PTC, Tech-Clarity and many more companies are publishing information related to the model-based engineering phase.
Here is was surprised by Oleg’s blog with his post Model-Based Confusion in 3D CAD and PLM.
If you read his post, you get the impression that the model-based approach is just a marketing issue instead of a significant change towards a digital enterprise. I quote:
Here is the thing… I don’t see much difference between saying PLM-CAD integration sharing data and information for downstream processes and “model-driven” data sharing. It might be a terminology thing, but data is managed by CAD-PLM tools today and accessed by people and other services. This is how things are working today. If model-driven is an approach to replace 2D drawings, I can see it. However, 2D replacement is something that I’ve heard 20 years ago. However, 2D drawings are still massively used by manufacturing companies despite some promises made by CAD vendors long time ago.
I was surprised by the simplicity of this quote. As if CAD vendors are responsible for new ways of working. In particular, automotive and aerospace companies are pushing for a model-based connection between engineering and manufacturing to increase quality, time to market and reduced handling costs. The model-based definition is not just a marketing issue as you can read from benefits reported by Jennifer Herron (Re-use your CAD – the model-based CAD handbook – describing practices and benefits already in 2013) or Tech-Clarity (The How-To Guide for adopting model-based definition – describing practices and benefits – sponsored by SolidWorks)
Oleg’s post unleashed several reactions of people who shared his opinion (read the comments here). They are all confused, t is all about marketing / let’s not change / too complex. Responses you usually hear from a generation that does not feel and understand the new approaches of a digital enterprise. If you are in the field working with multiple customers trying to understand the benefits of model-based definition, you would not worry about terminology – you would try to understand it and make it work.
Model-Based – just marketing?
In his post, Oleg refers to CIMdata’ s explanation of the various aspects of model-based in the context of PLM. Instead of referring to the meaning of the various acronyms, Peter Bilello (CIMdata) presented at the latest PDT conference (Oct 2017 – Gothenburg) an excellent story related to the various aspects of the model-based aspects, actually the whole conference was dedicated to the various aspects of a Model-Based Enterprise illustrates that it is not a vendor marketing issue. You can read my comments from the vendor-neutral conference here: The weekend after PDT Europe 2017 Part 1 and Part 2.
There were some dialogues on LinkedIn this weekend, and I promised to publish this post first before continuing on the other aspects of a model-based enterprise. Just today Oleg published a secondary post related to this topic: Model-Based marketing in CAD and PLM, where again the tone and blame is to the PLM/CAD vendors, as you can see from his conclusion:
I can see “mode-based” as a new and very interesting wave of marketing in 3D CAD and PLM. However, it is not pure marketing and it has some rational. The rational part of model-based approach is to have information model combined from 3D design and all connected data element. Such model can be used as a foundation for design, engineering, manufacturing, support, maintenance. Pretty much everything we do. It is hard to create such model and it is hard to combine a functional solution from existing packages and products. You should think how to combine multiple CAD systems, PLM platforms and many other things together. It requires standards. It requires from people to change. And it requires changing of status quo. New approaches in data management can change siloed world of 3D CAD and PLM. It is hard, but nothing to do with slides that will bring shiny words “model-base”. Without changing of technology and people, it will remain as a history of marketing
Again it shows the narrow mindset on the future of a model-based enterprise. When it comes to standards I recommend you to register and watch CIMdata’s educational webinar called: Model-Based Enterprise and Standards – you need to register. John MacKrell CIMdata’s chairman gives an excellent overview and status of model-based enterprise initiative. After having studied and digested all the links in this post, I challenge you to make your mind up. The picture below comes from John’s presentation, an illustration where we are with model-based definition currently
Conclusion
The challenge of modern businesses is that too often we conclude too fast on complex issues or we frame new developments because they do not fit our purpose. You know it from politics. Be aware it is also valid in the world of PLM. Innovation and a path to a modern digital enterprise do not come easy – you need to invest and learn all the aspects. To be continued (and I do not have all the answers either)
Last week I posted my first review of the PDT Europe conference. You can read the details here: The weekend after PDT Europe (part 1). There were some questions related to the abbreviation PDT. Understanding the history of PDT, you will discover it stands for Product Data Technology. Yes, there are many TLA’s in this world.
Microsoft’s view on the digital twin
Now back to the conference. Day 2 started with a remote session from Simon Floyd. Simon is Microsoft’s Managing Director for Manufacturing Industry Architecture Enterprise Services and a frequent speaker at PDT. Simon shared with us Microsoft’s viewpoint of a Digital Twin, the strategy to implement a Digit Twin, the maturity status of several of their reference customers and areas these companies are focusing. From these customers it was clear most companies focused on retrieving data in relation to maintenance, providing analytics and historical data. Futuristic scenarios like using the digital twin for augmented reality or design validation. As I discussed in the earlier post, this relates to my observations, where creating a digital thread between products in operations is considered as a quick win. Establishing an end-to-end relationship between products in operation and their design requires many steps to fix. Read my post: Why PLM is the forgotten domain in digital transformation.
When discussing the digital twin architecture, Simon made a particular point for standards required to connect the results of products in the field. Connecting a digital twin in a vendor-specific framework will create a legacy, vendor lock-in, and less open environment to use digital twins. A point that I also raised in my presentation later that day.
Simon concluded with a great example of potential future Artificial Intelligence, where an asset based on its measurements predicts to have a failure before the scheduled maintenance stop and therefore requests to run with a lower performance so it can reach the maintenance stop without disruption.
Closing the lifecycle loop
Sustainability and the circular economy has been a theme at PDT for some years now too. In his keynote speech, Torbjörn Holm from Eurostep took us through the global megatrends (Hay group 2030) and the technology trends (Gartner 2018) and mapped out that technology would be a good enabler to discuss several of the global trends.
Next Torbjörn took us through the reasons and possibilities (methodologies and tools) for product lifecycle circularity developed through the ResCoM project in which Eurostep participated.
The ResCoM project (Resource Conservative Manufacturing) was a project co-funded by the European Commission and recently concluded. More info at www.rescom.eu
Torbjörn concluded discussing the necessary framework for Digital Twin and Digital Thread(s), which should be based on a Model-Based Definition, where ISO 10303 is the best candidate.
Later in the afternoon, there were three sessions in a separate track, related to design optimization for value, circular and re-used followed by a panel discussion. Unfortunate I participated in another track, so I have to digest the provided materials still. Speakers in that track were Ola Isaksson (Chalmers University), Ingrid de Pauw & Bram van der Grinten (IDEAL&CO) and Michael Lieder (KTH Sweden)
Connecting many stakeholders
Rebecca Ihrfors, CIO from the Swedish Defense Material Administration (FMV) shared her plans on transforming the IT landscape to harmonize the current existing environments and to become a broker between industry and the armed forces (FM). As now many of the assets come with their own data sets and PDM/PLM environments, the overhead to keep up all these proprietary environments is too expensive and fragmented. FWM wants to harmonize the data they retrieve from industry and the way they offer it to the armed forces in a secure way. There is a need for standards and interoperability.
The positive point from this presentation was that several companies in the audience and delivering products to Swedish Defense could start to share and adapt their viewpoints how they could contribute.
Later in the afternoon, there were three sessions in a separate track rented to standards for MBE inter-operability and openness that would fit very well in this context. Brian King (Koneksys), Adrian Murton (Airbus UK) and Magnus Färneland (Eurostep) provided various inputs, and as I did not attend these parallel sessions I will dive deeper in their presentations at a later time
PLM something has to change – bimodal and more
In my presentation, which you can download from SlideShare here: PLM – something has to change. My main points were related to the fact that apparently, companies seem to understand that something needs to happen to benefit really from a digital enterprise. The rigidness from large enterprise and their inhibitors to transform are more related to human and incompatibility issues with the future.
How to deal with this incompatibility was also the theme for Martin Eigner’s presentation (System Lifecycle Management as a bimodal IT approach) and Marc Halpern’s closing presentation (Navigating the Journey to Next Generation PLM).
Martin Eigner’s consistent story was about creating an extra layer on top of the existing (Mode 1) systems and infrastructure, which he illustrated by a concept developed based on Aras.
By providing a new digital layer on top of the existing enterprise, companies can start evolving to a modern environment, where, in the long-term, old Mode 1 systems will be replaced by new digital platforms (Mode 2). Oleg Shilovitsky wrote an excellent summary of this approach. Read it here: Aras PLM platform “overlay” strategy explained.
Marc Halpern closed the conference describing his view on how companies could navigate to the Next Generation PLM by explaining in more detail what the Gartner bimodal approach implies. Marc’s story was woven around four principles.
Principle 1 The bimodal strategy as the image shows.
Principle 2 was about Mode 1 thinking in an evolutionary model. Every company has to go through maturity states in their organization, starting from ad-hoc, departmental, enterprise-based to harmonizing and fully digital integrated. These maturity steps also have to be taken into account when planning future steps.
Principle 3 was about organizational change management, a topic often neglected or underestimated by product vendors or service providers as it relates to a company culture, not easy to change and navigate in a particular direction.
Finally, Principle 4 was about Mode 2 activities. Here an organization should pilot (in a separate environment), certify (make sure it is a realistic future), adopt (integrate it in your business) and scale (enable this new approach to exists and grow for the future).
Conclusions
This post concludes my overview of PDT Europe 2017. Looking back there was a quiet aligned view of where we are all heading with PLM and related topics. There is the hype an there is reality, and I believe this conference was about reality, giving good feedback to all the attendees what is really happening and understood in the field. And of course, there is the human factor, which is hard to influence.
Share your experiences and best practices related to moving to the next generation of PLM (digital PLM ?) !
When you are in a peaceful holiday accommodation close to the sea, it is about swimming, reading sleeping and food. I read two books this time Profit Beyond Measure from H. Thomas Johnson (2000) and Fast Future from David Burnstein (2013).
In a earlier post, PLM Statistics, I already referred to Johnson´s book. Now I had the time to read the whole book. Johnson is an advocate for MBM (Manage By Means) as compared to the most practiced MBM (Manage By Results) approach.
In Fast Future, Burnstein explains why his generation of Millennials (Generation Y) is not lazy and egocentric (etc. etc.) but different and ready for the future. Different from the Boomers, generation X and
These two books on two different topics have nothing in common you might think. But all you need is a PLM twisted brain, and it will be connected.
Let’s start with Profit Beyond Measure
Johnson in his introduction explains how manufacturing companies were gradually pushed into a MBR approach (Manage By Results). The Second World War was the moment that companies started to use accounting information to plan business activities. The growing presence of accountants in business started due to more regulations and financial regulations. Corporate executives were educated by professors of accounting and finance how to use their accounting information to plan and control business activities.
The result (quoting Johnson):
“..teaching a new generation of managers to put aside understanding the concrete particulars of how business organizes work. They taught them instead to focus exclusively on abstract quantitative generalizations about financial results”
And as he writes a little later:
“The unique feature of the multidivisional organization was the introduction of a level of managers that had not existed before. Managers at this level ran what appeared to be self-standing, fully articulated multifunctional companies known as divisions. The manager of a division, however, reported to a top management group that represented in effect, the market for capital and the market for managers”
The PLM-twisted brain understands that Johnson is describing one of the major inhibitors for PLM. PLM requires departments and individuals TO SHARE and work CONCURRENT on information. Meanwhile, department and division leaders are trained, pushed and measured to optimize their silo businesses to deliver the right financial results. Executives above the management monitor the consolidated numbers and have the slightest understanding of the real business challenges PLM can solve. Here, innovative ways of working are not discussed; numbers (costs /ROI) are discussed.
To proceed with Johnson, he believes in MBM (Manage by Means). Manage by Means could be compared with the way an organic life system is behaving. Johnson describes it as:
“Every entity is focusing on doing work, not on manipulating quantitative abstractions about work. In a company this would mean every person’s activity will embody that most fundamental condition of natural life systems – namely that all knowing is doing and that all doing is knowing”
Although Johnson is focusing on manufacturing companies (Toyota and Scania as two major examples of MBM), the PLM-twisted mind reads this as a concept that matches the PLM vision.
Everything and everyone is connected to the process and having the understanding how to interpret the data and what do to. This is how I imagine PLM implementations. Provide the right information to every person not matter where this person is in the lifecycle of the product. Too much automation prevents the system to be flexible and adapt to changes an in addition, it does not challenge the user anymore to think.
Enough about Profit Beyond Measure, ending with a quote about Manage by Means:
“…. which will bring a change in thinking for the next generation of managers more revolutionary than that which every previous generation has ever experienced”
Now the Fast Future
In Fast Future, David Burnstein talks about his generation, the Millennials, and how they are different. The Millennials are people who are now between 20 and 35. They grew up with one foot in the old analogue world and came to full wisdom in a digital, social connected manner during several shocking crises that formed their personality and behavior ( 9/11 – financial crisis – globalization – huge unemployment) according to Burnstein. People also referred to them as Generation Y.
In the context of this post we have the need to imagine four generations:
- The Pré-boomers, who build up the economy after the second world war, and as we learned from Johnson who introduced the mechanical thinking for business (MBR – management by results)
- The Boomers (my generation) who had the luxury to study and discuss the ultimate change for the world (make love not war), idealistic to change the world, but now most of us working in an MBR mode
- Generation X, they introduced punk, skeptics. They are supposed to be cynical, very ego-centric and materialistic. I am sure they also have positive points, but I haven’t read a book about them and you do not meet Generation X in the context of a particular change to something new (yet)
- Generation Y, the Millennials, who considered by the Boomers, is another lazy generation, all the time surfing the internet, not committing to significant causes, but seem to enjoy themselves. Burnstein in his book changes the picture as we will see below.
According to Burnstein the Millennials are forced to behave different as the traditional society is falling apart due to different crises and globalization. They have to invent a new purpose. And as they are so natural with all the digital media they can connect to anyone or any group to launch ideas, initiatives and build companies. The high unemployment numbers in their generation force them to take action and to become an entrepreneur, not always for profit but also for social or sustainable reasons.
They understand they will have to live with uncertainty and change all their lives. No guaranteed job after education, no certain pension later and much more uncertainty. This creates a different attitude. You embrace change, and you do not go for a single dream anymore like many of the boomers did.
Choosing the areas that are essential for you and where you think you can make a significant impact become important. Burnstein points to several examples of his generation and the impact they already have on society. Mark Zuckerberg – Facebook founder is a Millennial, many modern social apps are developed by Millennials, Obama won the elections twice, due to the impact and connectivity of the Millennials generation, the Facebook revolutions in the Middle East (Tunisia / Egypt/Libya) al lead by desperate Millennials that want to make a change.
When reading these statements, I wondered:
Would there also be Millennials in Germany?
As in Germany the impact of 9/11, the financial crisis and unemployment numbers did not touch that much. Are they for that reason the same as generation X? Perhaps a German reader in the millennial age can provide an answer here?
What I liked about the attitude described by Burnstein is that the Millennials network together for a better cause, a meaningful life. This could be by developing products, offer different types of services all through a modern digital means. The activities all in the context of social responsibility and sustainability, not necessary to become rich.
As noticed, they think different, they work different and here Johnson’s quote came to my mind:
“…. which will bring a change in thinking for the next generation of managers more revolutionary than that which every previous generation has ever experienced”
And the PLM-twisted brain started drifting
Is this the generation of the Millennials Johnson is hoping for? The high-level concept of Management by Means is based on the goal to have every entity directly linked to the cause – a customer order, flexibility, ability to change when needed. Not working with abstract mechanical models. I think the Millennials should be able to understand and lead these businesses.
This culture change and a different business approach to my opinion are about modern PLM. For me, modern PLM focuses on connecting the data, instead of building automated processes with a lot of structured data.
Modern PLM combines the structured and unstructured data and provides the user the right information in context. This matches the MBM way of thinking and the modus operandus of the Millennials.
Current the modern PLM system as I described is does not exist (or I haven’t seen it yet). Also I have not worked with Millennials in a leading role in a company. Therefore, I kept on dreaming during my holiday – everything is possible if you believe it –even standing on the water:
And although after reading these books and seeing the connection, you can have the feeling that you are able to walk on the water. There are also potential pitfalls (a minute later) ahead to be considered as you can see below:
Conclusion
My PLM-twisted mind as you noticed combines everything.
What do you think?
Did I hallucinate or is there a modern future for business and PLM.
I am looking forward to learning your dreams.
Jos Voskuil's Weblog
Jos, great thoughts about BOM management. Here are some of my thoughts. I can see how BOM management will evolve…
As a complement, even if more and more of the diversity of a product is managed at the software level…
1) A wiring diagram stores information (wires between ports of the electrical components) that does not exist in most of…
BOM has NEVER been the sole "master" of the Product. The DEFINITION FILE is ! For example the wiring of…
Interesting discussion about part numbers and where they originate. Though there seems to be consensus about the EBOM and MBOM,…
