When I started this series in July, I expected to talk mostly about new ways of working, enabled through a data-driven and model-based approach. However, when analyzing what is needed for such a future (part 3), it became apparent that many of these new ways of working are dependent on technology.
From coordinated to connected sounds like a business change;
however, it all depends on technology. And here I have to thank Marc Halpern (Gartner’s Research VP, Engineering and Design Technologies) again, who came with this brilliant scheme below:
So now it is time to address the last point from my starting post:
Configuration Management requires a new approach. The current methodology is very much based on hardware products with labor-intensive change management. However, the world of software products has different configuration management and change procedures. Therefore, we need to merge them into a single framework. Unfortunately, this cannot be the BOM framework due to the dynamics in software changes.
Configuration management at this moment
PLM and CM are often considered overlapping. My March 2019 post: PLM and Configuration Management – a happy marriage? shares some thoughts related to this point
Does having PLM or PDM installed mean you have implemented CM? There is this confusion because revision management is considered the same as configuration management. Read my March 2020 post: What the FFF is happening? Based on a vivid discussion launched by Yoann Maingon, CEO and founder of Ganister, an example of a modern, graph database-based, flexible PLM solution.
To hear it from a CM-side, I discussed it with Martijn Dullaart in my February 2021
post: PLM and Configuration Management. We also zoomed in on CM2 in this post as a methodology.
Martijn is the Lead Architect for Enterprise Configuration Management at ASML (Our Dutch national pride) and chairperson of the Industry 4.0 committee of the Integrated Process Excellence (IPX) Congress.
As mentioned before in a previous post (part 6), he will be speaking at the PLM Roadmap & PDT Fall conference starting this upcoming week.
In this post, I want to talk about the CM future. For understanding the current situation, you can find a broad explanation here on Wikipedia. Have a look at CM in the context of the product lifecycle, ensuring that the product As-Specified and As-Designed information matches the As-Built and As-Operated product information.
A mismatch or inconsistency between these artifacts can lead to costly errors, particularly in later lifecycle stages. CM originated from the Aerospace and Defense industry for that reason.
However, companies in other industries might have implemented CM practices too. Either due to regulations or thanks to the understanding that configuration mistakes can cause significant damage to the company.
Historically configuration management addresses the needs of “slow-moving” products. For example, the design of an airplane could take years before manufacturing started. Tracking changes and ensuring consistency of all referenced datasets was often a manual process.
On purpose, I wrote “referenced datasets,” as the information was not connected in a single environment most of the time. The identifier of a dataset ( an item or a document) was the primary information carrier used for mentally connecting other artifacts to keep consistency.
The Institute of Process Excellence (IPX) has been one of the significant contributors to configuration management methodology. They have been providing (and still offer) CM2 training and certification.
As mentioned before, PLM vendors or implementers suggest that a PLM system could fully support Configuration Management. However, CM is more than change management, release management and revision management.
As the diagram from Martijn Dullaart shows, PLM is one facet of configuration management.
Of course, there are also (a few) separate CM tools focusing on the configuration management process. CMstat’s EPOCH CM tool is an example of such software. In addition, on their website, you can find excellent articles explaining the history and their future thoughts related to CM.
The future will undoubtedly be a connected, model-based, software-driven environment. Naturally, therefore, configuration management processes will have to change. (Impressive buzz word sentence, still I hope you get the message).
From coordinated to connected has a severe impact on CM. Let’s have a look at the issues.
Configuration Management – the future
The transition to a data-driven and model-based infrastructure has raised the following questions:
- How to deal with the granularity of data – each dataset needs to be validated. For example, a document (a collection of datasets) needs to be validated in the document-based approach. How to do this efficiently?
- The behavior of a product (or system) will more and more dependent on software. Product CM practices have been designed for the hardware domain; now, we need a mix of hardware and software CM practices.
- Due to the increased complexity of products (or systems) and the rapid changes due to software versions, how do we guarantee the As-Operated product is still matching the As-Designed / As-Certified definitions.
I don’t have answers to these questions. I only share observations and trends I see in my actual world.
Granularity of data

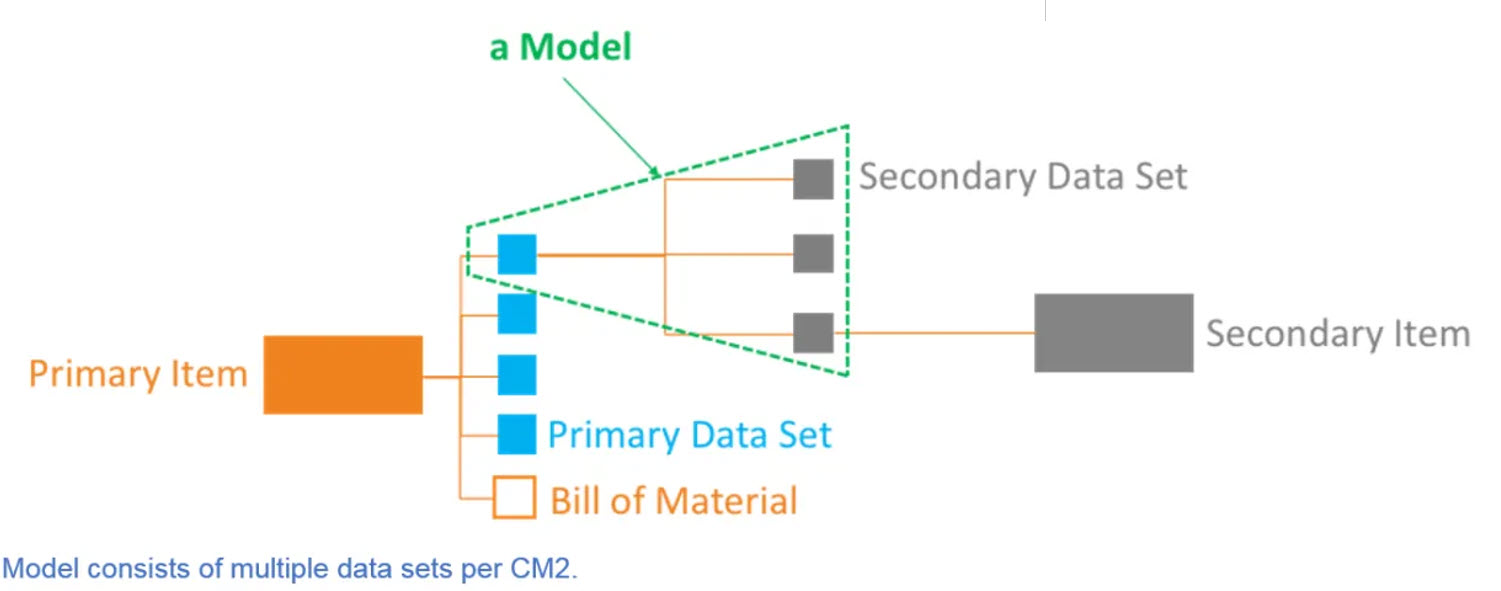

The concept of datasets has been discussed in my post (part 6). Now it is about how to manage the right sets of connected data.
The image on the left, borrowed from Erik Herzog’s presentation at the PDM Roadmap & PDT Fall conference in 2020, is a good illustration of the challenge.
At that time, Erik suggested that OSLC could be the enabler of a digital CM backbone for an enterprise. Therefore, it was a pleasure to see Erik providing an update at the yearly OSLC Fest conference this week.
You can find the agenda and Erik’s presentation here on day 2.
OSLC as a framework seems to be a good candidate for supporting modern CM scenarios. It allows a company to build full traceability between all relevant artifacts (if digital available). I can see the beauty of the technical infrastructure.
Still, it is about people and processes first. Therefore, I am curious to learn from my readers who believe and experiment with such a federated infrastructure.
More software
Traditional working companies might believe that software should be treated as part of the Bill of Materials. In this theory, you treat software code as a part, with a part number and revision. In this way, you might believe configuration management practices do not have to change. However, there are some fundamental differences in why we should decouple hardware and software.

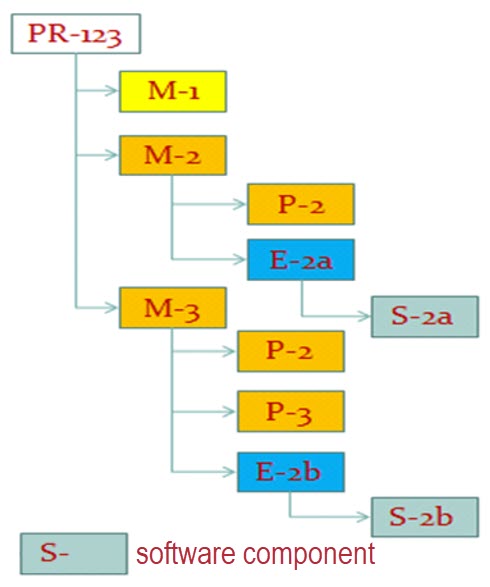

First, for the same hardware solution, there might be a whole collection of valid software codes. Just like your computer. How many valid software codes, even from the same application, can you run on this hardware? Managing a computer system and its software through a Bill of Materials is unimaginable.
A computer, of course, is designed for running all kinds of software versions. However, modern products in the field, like cars, machines, electrical devices, all will have a similar type of software-driven flexibility.
For that reason, I believe that companies that deliver software-driven products should design a mechanism to check if the combination of hardware and software is valid. For a computer system, a software mismatch might not be costly or painful; for an industrial system, it might be crucial to ensure invalid combinations can exist. Click on the image to learn more.
Solutions like Configit or pure::variants might lead to a solution. In Feb 2021, I discussed in PLM and Configuration Lifecycle Management with Henrik Hulgaard, the CTO from Configit, the unique features of their solution.
I hope to have a similar post shortly with Pure Systems to understand their added value to configuration management.
Software change management is entirely different from hardware change management. The challenge is to have two different change management approaches under one consistent umbrella without creating needless overhead.
Increased complexity – the digital twin?
With the increased complexity of products and many potential variants of a solution, how can you validate a configuration? Perhaps we should investigate the digital twin concept, with a twin for each instance we want to validate.
Having a complete virtual representation of a product, including the possibility to validate the software behavior on the virtual product, would allow you to run (automated) validation tests to certify and later understand a product in the field.
No need for inspection on-site or test and fix upgrades in the physical world. Needed for space systems for sure, but why not for every system in the long term. When we are able to define and maintain a virtual twin of our physical product (on-demand), we can validate.
I learned about this concept at the 2020 Digital Twin conference in the Netherlands. Bart Theelen from Canon Production Printing explained that they could feed their simulation models with actual customer data to simulate and analyze the physical situation. In some cases, it is even impossible to observe the physical behavior. By tuning the virtual environment, you might understand what happens in the physical world.
An eye-opener and an advocate for the model-based approach. Therefore, I am looking forward to the upcoming PLM Roadmap & PDT Fall conference. Hopefully, Martijn Dullaart will share his thoughts on combining CM and working in a model-based environment. See you there?
Conclusion
Finally, we have reached in this series the methodology part, particularly the one related to configuration management and traceability in a very granular, digital environment.
After the PLM Roadmap & PDT fall conference, I plan to follow up with three thought leaders on this topic: Martijn Dullaart (ASML), Maxime Gravel (Moog) and Lisa Fenwick (CMstat). What would you ask them?
After “The Doctor is IN,” now again a written post in the category of PLM and complementary practices/domains. In January, I discussed together with Henrik Hulgaard from Configit the complementary value of PLM and CLM (Configuration Lifecycle Management). For me, CLM is a synonym for Product Configuration Management.
PLM and Complementary Practices (feedback)
As expected, readers were asking the question:
“What is the difference between CLM (Configuration Lifecycle Management) and CM(Configuration Management)?”
Good question.
As the complementary role of CM is also a part of the topics to discuss, I am happy to share this blog today with Martijn Dullaart. You probably know Martijn if you are actively following topics on PLM and CM.
Martijn has his own blog mdux.net, and you might have seen him recently in Jenifer Moore’s PLM TV-episode: Why CM2 for Faster Change and Better Documentation. Martijn is the Lead Architect for Enterprise Configuration Management at ASML (Our Dutch national pride) and chairperson of the Industry 4.0 committee of the Integrated Process Excellence (IPX) Congress. Let us start.
Configuration Management and CM2
Martijn, first of all, can you bring some clarity in terminology. When discussing Configuration Management, what is the pure definition, what is CM2 as a practice, and what is IpX‘s role and please explain where you fit in this picture?
Classical CM focuses mainly on the product, the product definition, and actual configurations like as-built and as-maintained of the product. CM2 extends the focus to the entire enterprise, e.g., the processes and procedures (ways of working) of a company, including the IT and facilities, to support the company’s value stream.
CM2 expands the scope to all information that could impact safety, security, quality, schedule, cost, profit, the environment, corporate reputation, or brand recognition.
Basically, CM2 shifts the focus to Integrated Process Excellence and promotes continual improvement.
Next to this, CM2 provides the WHAT and the HOW, something most standards lack. My main focus is still around the product and promoting the use of CM outside the product domain.
For all CM related documentation, we are already doing this.
Configuration Management and PLM
People claim that if you implement PLM as an enterprise backbone, not as an engineering tool, you can do Configuration Management with your PLM environment.
What is your opinion?
Yes, I think that this is possible, provided that the PLM tool has the right capabilities. Though the question should be: Is this the best way to go about it. For instance, some parts of Configuration Management are more transactional oriented, e.g., registering the parts you build in or out of a product.
Other parts of CM are more iterative in nature, e.g., doing impact analysis and making an implementation plan. I am not saying this cannot be done in a PLM tool as an enterprise backbone. Still, the nature of most PLM tools is to support iterative types of work rather than a transactional type of work.
I think you need some kind of enterprise backbone that manages the configuration as an As-Planned/As-Released baseline. A baseline that shows not only the released information but also all planned changes to the configuration.
Because the source of information in such a baseline comes from different tools, you need an overarching tool to connect everything. For most companies, this means that they require an overarching system with their current state of enterprise applications.
Preferably I would like to use the data directly from the sources. Still, connectivity and performance are not yet to a level that we can do this. Cloud and modern application and database architectures are very promising to this end.
Configuration Management for Everybody?
I can imagine companies in the Aerospace industry need to have proper configuration management for safety reasons. Also, I can imagine that proper configuration management can be relevant for other industries. Do they need to be regulated, or are there other reasons for a company to start implementing CM processes?
I will focus the first part of my answer within the context of CM for products only.
Basically, all products are regulated to some degree. Aerospace & Defense and Medical Device and Pharma are highly regulated for obvious reasons. Other industries are also regulated, for example, through environmental regulations like REACH, RoHS, WEEE or safety-related regulations like the CE marking or FCC marking.
Customers can also be an essential driver for the need for CM. If, as a customer, you buy expensive equipment, you expect that the supplier of that equipment can deliver per commitment. The supplier can also maintain and upgrade the equipment efficiently with as few disruptions to your operations as possible.
Not just customers but also consumers are critical towards the traceability of the product and all its components.
Even if you are sitting on a rollercoaster, you presume the product is well designed and maintained. In other words, there is often a case to be made to apply proper configuration management in any company. Still, the extent to which you need to implement it may vary based on your needs.
The need for Enterprise Configuration Management is even more significant because one of the hardest things is to change the way an organization works and operates.
Often there are different ways of doing the same thing. There is a lot of tribal knowledge, and ways of working are not documented so that people can easily find it, let alone that it is structured and linked so that you can do an impact analysis when you want to introduce a change in your organization.
CM and Digital Transformation
One of the topics that we both try to understand better is how CM will evolve in the future when moving to a more model-based approach. In the CM-terminology, we still talk about documents as information objects to be managed. What is your idea of CM and a model-based future?
It is indeed a topic where probably new or changed methodology is required, and I started already describing CM topics in several posts on my enterprise MDUX blog. Some of the relevant posts in this context are:
- HELP!!! Parts, Documents, Data & Revisions
- Where does the deliverable begin, and where does it end?
- A Glimpse into the Future of CM: Part 1, Part 2, and Part 3
First, let me say that model-based has the future, although, at the same time, the CM aspects are often overlooked.
When managing changes, too much detail makes estimating cost and effort for a business case more challenging, and planning information that is too granular is not desirable. Therefore, CM2 looks at datasets. Datasets should be as small as possible but not smaller. Datasets are sets of information that need to be released as a whole. Still, they can be released independently from other datasets. For example, a bill of materials, a BOM line item is not a dataset, but the complete set of BOM line items that make up the BoM of an assembly is considered a dataset. I can release a BoM independent from a test plan.
Data models need to facilitate this. However, today, in many PLM systems, a BOM and the metadata of a part are using the same revision. This means that to change the metadata, I need a revision of the BoM, while the BoM might not change. Some changes to metadata might not be relevant for a supplier. Communicating the changes to your supplier could create confusion.
I know some people think this is about document vs. model-centric, but it is not. A part is identified in the ‘physical world’ by its part ID. Even if you talk about allowing revisions in the supply chain, including the part ID’s revision, you create a new identifier. Now every new revision will end up in a different stock location. Is that what we want?
In any case, we are still in the early days, and the thinking about this topic has just begun and needs to take shape in the coming year(s).
CM and/or CLM?
As in my shared blog post with Henrik Hulgaard related to CLM, can you make a clear differentiation between the two domains for the readers?
Configuration Lifecycle Management (CLM) is mainly positioned towards Configurable Products and the configurable level of the product.

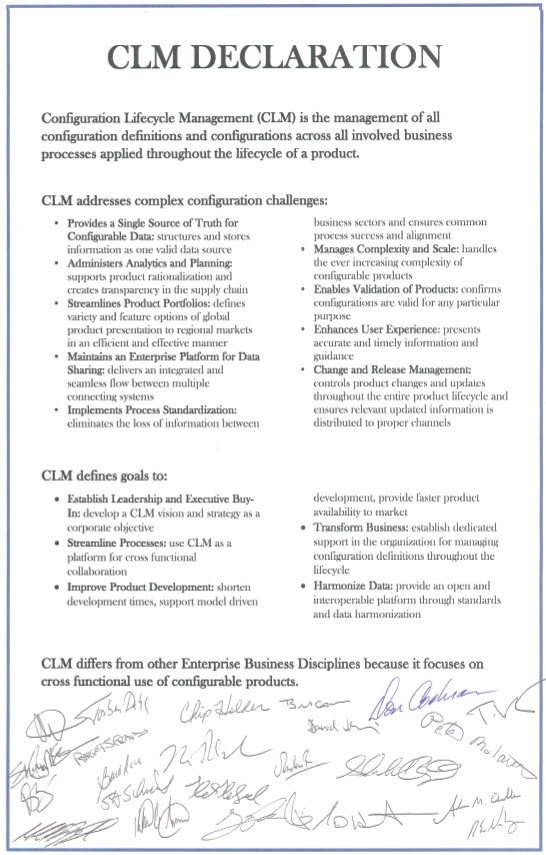

Why I think this, even though Configit’s CLM declaration states that “Configuration Lifecycle Management (CLM) is the management of all product configuration definitions and configurations across all involved business processes applied throughout the lifecycle of a product.”,
it also states:
- “CLM differs from other Enterprise Business Disciplines because it focuses on cross-functional use of configurable products.”
- “Provides a Single Source of Truth for Configurable Data“
- “handles the ever-increasing complexity of Configurable Products“.
I find Configuration Lifecycle Management is a core Configuration Management practice you need to have in place for configurable products. The dependencies you need to manage are enormously complex. Software parameters that depend on specific hardware, hardware to hardware dependencies, commercial variants, and options.
Want to learn more?
In this post, we just touched the surface of PLM and Configuration Management. Where can an interested reader find more information related to CM for their company?
For becoming trained in CM2, people can reach out to the Institute for Process Excellence, a company that focuses on consultancy and methodology for many aspects of a modern, digital enterprise, including Configuration Management.
And there is more out there, e.g.:
- ENGINEERING DOCUMENTATION CONTROL HANDBOOK, Configuration Management, Second Edition, by Frank. B. Watts
- Decision tree to assess interchangeability, Also Jörg Eisenträger (which is a good starting point)
- Configuration Management: Theory and Application for Engineers, Managers, and Practitioners, by Jon Quigleyand Kim Robertson.
- CM Insights Blog by CMStat
- Configuration Management Standard EIA649C by SAE
- MIL-HDBK-61A by product-lifecycle-management.com
Conclusion
Thanks, Martijn, for your clear explanations. People working seriously in the PLM domain managing the full product lifecycle should also learn and consider Configuration Management best practices. I look forward to a future discussion on how to perform Configuration Management in a model-based environment.
PLM, CLM, and CM – mind the overlap
First of all, thank you for the overwhelming response to the survey that I promoted last week: PLM 2021– your goals? It gave me enough inspiration and content to fill the upcoming months.
The first question of the survey was dealing with complementary practices or systems related to a traditional PLM-infrastructure.

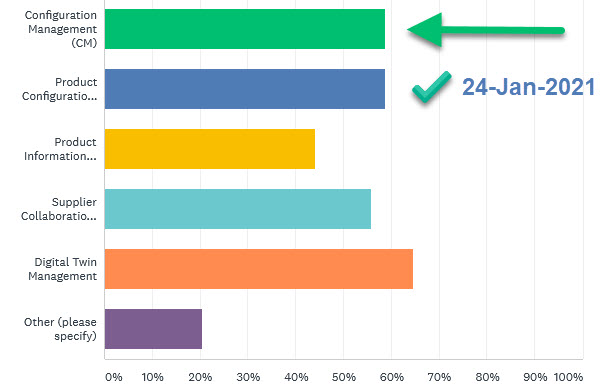

As you can see, most of you are curious about Digital Twin management 68 % (it is hype). Second best are Configuration Management, Product Configuration Management and Supplier Collaboration Management, all with 58% of the votes. Click on the image to see the details. Note: you could vote for more than one topic.
Product Configuration Management
Therefore, I am happy to share this blog space with Configit’s CTO, Henrik Hulgaard. Configit is a company specialized in Product Configuration Management, or as they call it, Configuration Lifecycle Management (CLM).
Recently Henrik wrote an interesting article on LinkedIn: How to achieve End-To-End Configuration. A question that I heard several times from my clients. How to align the selling and delivery of configurable products, including sales, engineering and manufacturing?
Configit – the company / the mission
Henrik, thanks for helping me explaining the complementary value of end-to-end Product Configuration Management to traditional PLM systems. First of all, can you give a short introduction to Configit as a company and the unique value you are offering to your clients?
Hi Jos, thank you for having me. Configit has worked with configuration challenges for the last 20 years. We are approximately 200 people and have offices in Denmark, Germany, India, and in the US (Atlanta and Detroit) and work with some of the world’s largest manufacturing companies.
We are founded on patented technology, called Virtual Tabulation. The YouTube movie below explains the term Virtual Tabulation.
Virtual Tabulation compiles EVERY possible configuration scenario and then compresses that data into a very small file so that it can be used by everyone in your team.
Virtual Tabulations enables important capabilities such as:
- Consolidation of all configuration data, both Engineering and Sales related, into single-source-of-truth.
- Effortless maintenance of complicated rule data.
- Fast and error-free configuration engine that provides perfect guidance to the customer across multiple platforms and channels..
As the only vendor, Configit provides a configuration platform that fully supports end-to-end configuration processes, from early design and engineering, over sales and manufacturing to support and service configurable products.

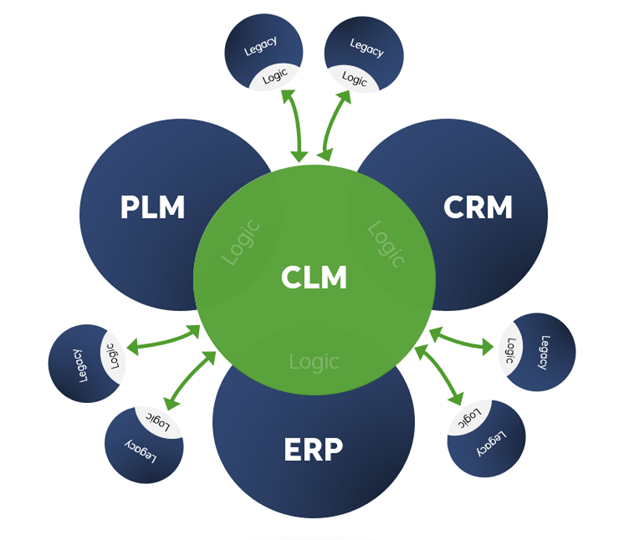

This is what we understand by Configuration Lifecycle Management (CLM).
Why Configuration Lifecycle Management?
You have introduced the term Configuration Lifecycle Management – another TLA (Three Letter Acronym) and easy pronounce. However, why would a company being interested to implement Configuration Lifecycle Management (CLM)?
CLM is a way to break down the siloed systems traditionally found in manufacturing companies where products are defined in a PLM system, sold using a CRM/CPQ system, manufactured using an ERP system and serviced by typically ad-hoc and home-grown systems. A CLM system feeds these existing systems with an aligned and consistent view of what variants of a configurable product is available.
Organizations obtain several benefits when aligning across functions on what product variants it offers:
- Engineering: faster time-to-market, optimized variability, and the assurance to only engineer products that are sold
- Sales: reducing errors, making sure that what gets quoted is accurate, and reducing the time to close the deal. The configurator provides current, up-to-date, and accurate information.
- Manufacturing: reducing errors and production stoppages due to miss-builds
- Service: accurate information about the product’s configuration. The service technician knows precisely what capabilities to expect on the particular product to be serviced.
For example, one of our customers experienced a 95% reduction in the time – from a year to two weeks – it took them to create the configuration models needed to build and sell their products. This reduction meant a significant reduction in time to market and allowed additional product lines to be introduced.
CLM for everybody?
I can imagine that companies with products that are organized for mass-production still wanting to have the mindset of being as flexible as possible on the sales side. What type of companies would benefit the most from a CLM approach?
Any company that offers customized or configurable products or services will need to ensure that what is engineered is aligned with what is sold and serviced. Our customers typically have relatively high complexity with hundreds to thousands of configuration parameters.
CLM is not just for automotive companies that have high volume and high complexity. Many of our customers are in industrial components and machinery, offering complex systems and services. A couple of examples:
Philips Healthcare sells advanced scanners to hospitals and uses CLM to ensure that what is sold is aligned with what can be offered. They also would like to move to sell scanners as a service where the hospital may pay per MR scan.
Thyssenkrupp Elevators sell elevators that are highly customizable based on the needs and environment. The engineering rules start in the CAD environment. They are combined with commercial rules to provide guidance to the customer about valid options.
CLM and Digital Transformation
For me, CLM is an excellent example of what modern, digital enterprises need to do. Having product data available along the whole lifecycle to make real-time decisions. CLM is a connecting layer that allows companies to break the siloes between marketing, sales, engineering and operations. At C-level get excited by that idea as I can see the business value.
Now, what would you recommend realizing this idea?
- The first step is to move away from talking about parts and instead talk about features when communicating about product capabilities.
This requires that an organization establishes a common feature “language” (sometimes this is called a master feature dictionary) that is shared across the different functions.
As the feature codes are essential in the communication between the functions, the creation and updating of the feature language must be carefully managed by putting people and processes in place to manage them.
- The next step is typically to make information about valid configurations available in a central place, sometimes referred to as the single source of truth for configuration.
We offer services to expose this information and integrate it into existing enterprise systems such as PLM, ERP and CRM/CPQ. The configuration models may still be maintained in legacy systems. Still, they are imported and brought together in the CLM system.
Once consuming systems all share a single configuration engine, the organization may move on to improve on the rule authoring and replace the existing legacy rule authoring applications found in PLM and ERP systems with more modern applications such as Configit Ace.

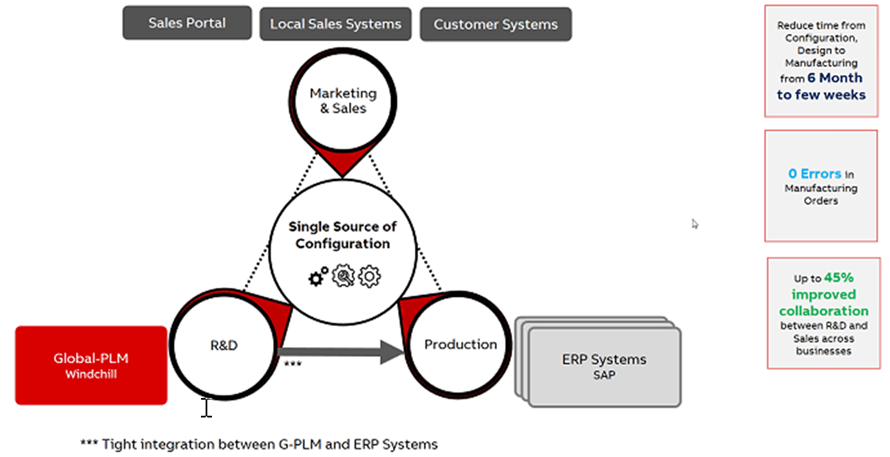

Customer Example: Connecting Sales, R&D and ERP
As can be seen from above, these steps all go across the functional silos. Thus, it is essential that the CLM journey has top-level management support, typically from the CIO.
COVID-19?
Related to COVID-19, I believe companies realized that they had to reconsider their supply chains due to limiting dependencies on critical suppliers. Is this an area where Configit would contribute too?
The digital transformation that many manufacturing companies have worked on for years clearly has been accelerated by the COVID-19 situation, and indeed they might now start to encode information about the critical suppliers in the rules.
We have seen this happening in 2011 with the tsunami in Japan when suddenly supplier could not provide certain parts anymore. The organization then has to quickly adapt the rules so that the options requiring those parts are no longer available to order.
Therefore, the CLM vision also includes suppliers as configuration knowledge has to be shared across organizations to ensure that what is ordered also can be delivered.
Learning more?
It is clear that CLM is a complementary layer to standard PLM-infrastructures and complementary to CRM and ERP. A great example of what is possible in a modern, digital enterprise. Where can readers find more information?
Configit offers several resources on Configuration Lifecycle Management on our website, including our blog, webinars and YouTube videos, e.g., Tech Chat on Manufacturing and Configuration Lifecycle Management (CLM)
Besides these continuous growing resources, there is the whitepaper “Accelerating Digital Transformation in Manufacturing with Configuration Lifecycle Management (CLM)” available here among other whitepapers.
What I have learned
- Configuration Lifecycle Management is relevant for companies that want to streamline their business functions, i.e., sales, engineering, manufacturing, and service. CLM will reduce the number of iterations in the process, reduce costly fixing when trying to align to customer demands, and ultimately create more service offerings by knowing customer existing configurations.
- The technology to implement CLM is there. Configit has shown in various industries, it is possible. It is an example of adding value on top of a digital information infrastructure (CRM, PLM, and ERP)
- The challenge will be on aligning the different functions to agree and align on one standard configuration authority. Therefore, responsibility should lie at the top-level of an organization, likely the modern CIO or CDO.
- I was glad to learn that Henrik stated:
“The first step is to move away from talking about parts and instead talk about features when communicating about product capabilities”.
A topic I will discuss soon when talking about Product & Portfolio Management with PLM.
Conclusion
It was a pleasure to work with Configit, in particular, Henrik Hulgaard, learning more about Configuration Lifecycle Management or whatever you may name it. More important, I hope you find this post insightful for your understanding if and where it applies to your business.
Always feel free to ask more questions related to the complimentary value of PLM and Product Configuration Management(CLM)
Jos Voskuil's Weblog
Your Miele story caught my attention… My 15-year-old Miele dishwasher (which I loved) was failing to wash dishes, and I…
Jos, great thoughts about BOM management. Here are some of my thoughts. I can see how BOM management will evolve…
As a complement, even if more and more of the diversity of a product is managed at the software level…
1) A wiring diagram stores information (wires between ports of the electrical components) that does not exist in most of…
BOM has NEVER been the sole "master" of the Product. The DEFINITION FILE is ! For example the wiring of…
